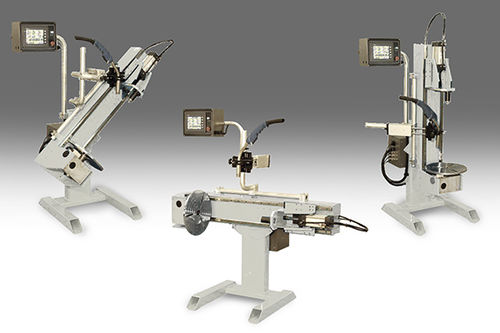

Pneumatic welding positioner CWP serieslinearmulti-axisdigital
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Orientation
- linear
- Number of axes
- multi-axis
- Other characteristics
- digital
Description
Full digital & PLC control support flexible welding process setting and multiple Programmable Welding Sequences edit.The system includes alarm hisory, alarm messages and PLC I/O monitoring functions.Tilt style main frame design that allows 7 angular position adjustment from vertical to horizontal position (0-90˚).Multi-function welding bracket assembly for all position special welding job demand.75 mm stroke adjustable pneumatic clamping of tailstock and movement on high precision linear guide way.TA-100 pneumatic torch actuator with 100 mm stroke to control and ensure welding torch positioning at high accuracy.Welding table equipped with low backlash precision reducer and include 38.5 mm diameter through-hole for gas purge.Allows for input voltage hookup 100-240V AC without manual linking.All units are high frequency protected.CE conformity
