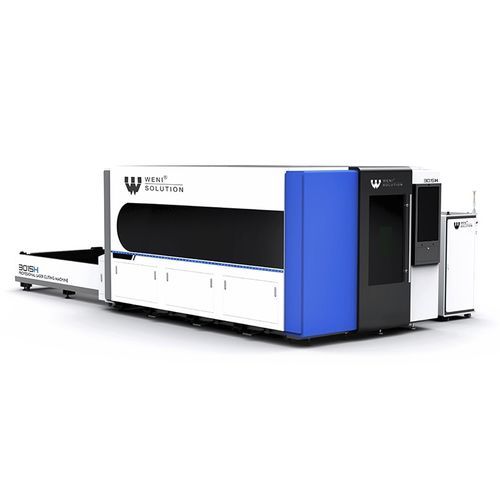

Fiber laser cutting machine WS H PRO

for metalfor metal sheetsCNC

A series of professional high-power models "High Power", with an additional loading platform and a full housing, which in practice means two interchangeable work tables working alternately, thus using the full production speed of the device. The perfect solution for full-size production, where the time of material processing is a priority. The housing of the WS-H PRO model has a 4-chamber extraction system, a fully sliding front door, and an additionally installed camera with an LCD monitor allows you to monitor the machining process. The laser has two open tables with a working area: 3000x1500mm, 4000x1500mm or 6000x2000mm and power from 1000W Maxphotonics / IPG / Raycus. Characterized by high speed and the best parameters. The control system is located in a separate, free-standing cabinet, so it is not exposed to damage and disturbances related to the operation of the device, and facilitates the operation of the device. All axes are driven by the brand's latest servo motors Schneider , which are characterized by high accuracy and very high durability. The device has an efficient laser, autofocus function, stable CypCut software with NESTING function (automatic optimization of project placement on the material), double cooling system, voltage stabilizer, lubrication system and dust extraction system. The use of a heavy structure, made of high-quality metal alloys and subjected to long-term and special treatment, causes the stresses in the material to diminish, significantly reducing vibrations, shocks and vibrations, thanks to which the H series is characterized by high rigidity, stability and shock resistance, and the machined materials retain the selected parameters.
