Screw compressor 250G
airelectrically-poweredstationary

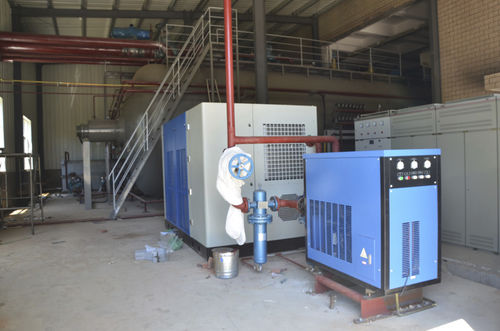

Screw compressor - 250G - Wenling Toplong Electrical & Mechanical Company - air / electrically-powered / stationary
Screw compressor - 250G - Wenling Toplong Electrical & Mechanical Company - air / electrically-powered / stationary
Screw compressor - 250G - Wenling Toplong Electrical & Mechanical Company - air / electrically-powered / stationary - image - 2
Screw compressor - 250G - Wenling Toplong Electrical & Mechanical Company - air / electrically-powered / stationary - image - 3
Screw compressor - 250G - Wenling Toplong Electrical & Mechanical Company - air / electrically-powered / stationary - image - 4
Screw compressor - 250G - Wenling Toplong Electrical & Mechanical Company - air / electrically-powered / stationary - image - 5
Screw compressor - 250G - Wenling Toplong Electrical & Mechanical Company - air / electrically-powered / stationary - image - 6
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Applications
for PET bottles
Other characteristics
low-noise, high-efficiency, air-cooled, two-stage, medium-pressure
Pressure

40 bar
(580.15 psi)

Flow

22.8 m³/min
(805.17 ft³/min)

Power

250 kW
(339.91 hp)

Description

The 250kw 3Mpa-4Mpa two-stage compression screw type air compressor has the characteristics of small vibration, low noise, less leakage, high efficiency and large gas output of the same power. The secondary medium-pressure micro-oil-lubricated screw compressors produced by our company have been widely used in industrial production and military and defense facilities. series medium pressure micro oil screw compressor technical parameters Micro oil lubricated bottle blowing screw air compressor has follows Features 1. No seal design, the host never leak Our unique patented technology, the host does not have mechanical seals nor a rubber seal, the complete elimination of leakage sealing produced a host so that the host never leak. 2. The power consumption province, the same power than conventional gas production more than 15% larger compressor Our air compressor can provide you with saving more than 15 percent, to CMN37G air compressor 24 hours a day, 350 days per year according to the calculation, electricity savings for your company to 46,620 degrees, one degree by one dollar per year for you save electricity 46,620 yuan. 3. Low oil content, very little oil content of compressed air Our outstanding technical superiority, the volumetric efficiency of up to 95% lower fuel injection quantity can be used to achieve the sealing effect, coupled with the unique design of the gas separation barrel, oil core processing burden is very light, very small amount of oil the air, sub-core long-life oil. The high-temperature, continuous operation
