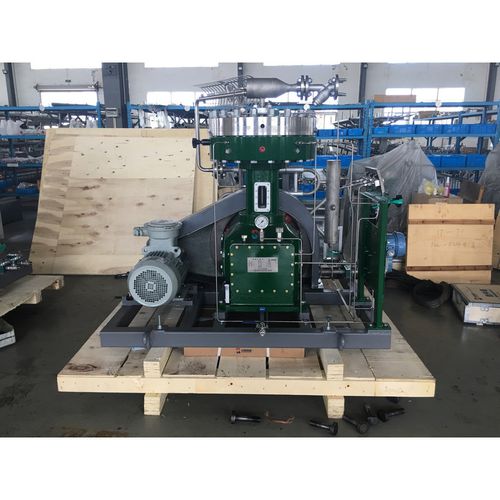

Diaphragm compressor G seriesairnitrogenhydrogen
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Type
- air, nitrogen, hydrogen, for oxygen, helium, argon
- Power source
- electric
- Portability
- stationary
- Lubrication
- oil-free
- Other characteristics
- high-pressure, with booster
- Pressure
Max.: 40 MPa
Min.: 1.3 MPa
- Flow
Max.: 70 m³/h
(2,472.03 ft³/h)Min.: 3 m³/h
(105.94 ft³/h)- Power
Max.: 7.5 kW
(10.2 hp)Min.: 1.5 kW
(2.04 hp)
Description
The diaphragm compressor is a special type of volumetric compressor with large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare and precious, flammable, explosive, toxic and harmful, corrosive and high pressure gases.
