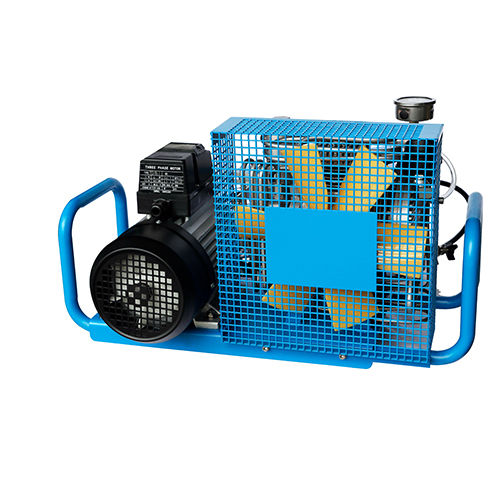

High-pressure compressor NRX-100

pistonbreathing airelectrically-powered

Features 1. The rotating parts are equipped with protective covers to ensure the safety of operators; 2. High strength nylon cooling fan has better cooling effect; 3. Strengthen the shockproof pad for the base of profiled steel plate to make the equipment run more smoothly; 4. Compact structure, more convenient to move; 5. Motor driven or gasoline engine driven to meet the air supply requirements under various conditions; 6. Splash type efficient lubrication; 7. Air filter (paper filter element) 8. Oil water separator (standard with manual blowdown, optional with automatic blowdown) 9. The air purification system (standard with manual blowdown, optional with automatic blowdown) is composed of activated carbon, molecular sieve and carbon monoxide absorbing molecules, which is a triple breathing air purification system. The reusable packing cartridge is simple and convenient for replacement and cost saving 10. Manual power stop function (optional automatic stop) 11. Final safety valve, automatic relief of overpressure 12. Shockproof pressure gauge 0-5800psi / 400bar 13. The compressor base is made of fine and durable; 14. Stainless steel cooling system; 15. The operation mode is simple and convenient for maintenance. scuba air compressor technical data NRX-100 Exhaust volume L/min - 100L/min Pressure bar - 150-330 bar Power KW - 2.2KW Speed r/min - 2300r/min Voltage V/HZ - 220V/380V/460 50HZ-60HZ Weight KG - 47KG compression stages - 4 stage Outlet size - G5/8 Dimension mm - 650*380*360mm Note - Price USD - EXW 900USD
