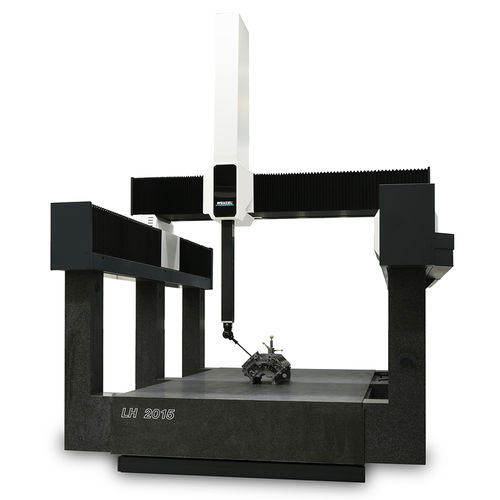

Gantry coordinate measuring machine LH series

multi-sensormechanicalhigh-precision

The LH Gantry is a CNC coordinate measuring machine with air bearings in all axes. It offers all the advantages and application possibilities of the LH series and was also specially designed for the inspection of large-volume and heavy workpieces. The raised guides in the Y-axis additionally ensure maximum stability and rigidity, even with dynamic movements. Features Ergonomic design Easy operation | Maintenance-friendly | Aesthetic design Highest mechanical precision Granite in all axes | Handmade | Unique mechanical precision High flexibility Customised measuring volume | Data compatibility | Suitable for automation Low operating costs Low air consumption | Fast and reliable spare parts availability Multiple sensor options Switching sensor systems | 3- or 5-axis scanning | Optical sensors Industrial computed tomography Overall, the machine body forms an inherently stable, homogeneous unit with optionally integrated active vibration damping, which does not require a separate foundation. Thermal environmental influences acting on the workpiece and the CMM can be corrected by means of automatic temperature compensation (optional). Through the optional use of a rotary table, even large rotationally symmetrical components can be measured flexibly and accurately. measuring machines of the LH Gantry series are available in the accuracy classes Standard, Premium and Premium-Select.
