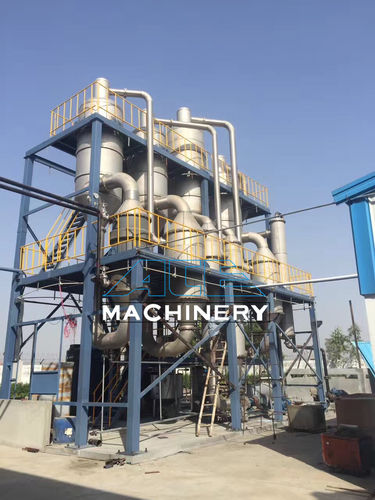

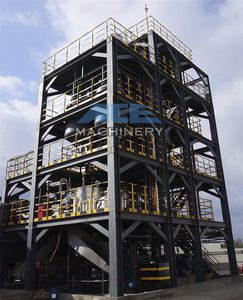

Vacuum evaporator

processfor wastewater treatmentautomatic

Waste Water Evaporator We make waste water evaporator/crystallizer according to the specification of the waste water. Capacity : 1T/hr to 300T/hr . Typical process: multiple evaporator+ crystallizer + centrifuge or MVR Evaporator + centrifuge Material: 304/316L/316Ti/2205/Ti/Carbon steel It is Automatic system with CIP unit. The heat source can be steam/ electricity/ waste vapor etc. The whole system saves engergy much and easy for operation, The wastewater evaporator is easy to operate and easy to maintain, and it is widely used in biochemical, food and pharmaceutical production enterprises MVR waste water evaporator consist: Evaporator: The liquid material inside the evaporator heated by steam for evaporation. Choose different type evaporator according to different liquid material features. Separator(crystallizer):use to separate vapor and liquid, according to different liquid features choose different type separator(crystallizer), such as normal separator, gravity separator, special design separator (crystallizer ). Vacuum system: Use to keep the whole system vacuum degree, pump some air, fixed gas, liquid entrainment of gas from the evaporator, so as to obtain the whole system stable evaporation process. Pump: Use to transfer liquid and concentrated liquid. According to different liquid features choose different pumps, such as centrifugal pump, displacement pump,screw pump. Compressor: Use to compress secondary vapor to supply heating source, improve secondary vapor enthalpy. According to different flow and compression ratio choose different compressor, in the case of pressure rise increase, multistage compressor can be used in series.
