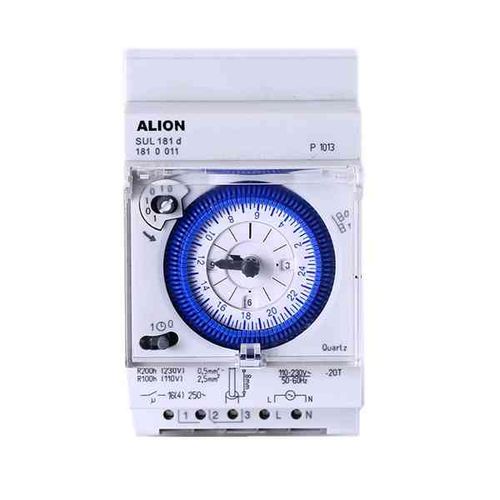

Analog time switch SUL181d

DIN rail

The SUL181d/SYN161d daily program analog time switches are programmed using switching segments, it’s quickly read and easy to change. The shortest switching time is 15 minutes and it can switching with continuous ON/AUTO/continuous OFF. Description: - Analogue time switch - 1 channel - DuoFix spring terminals - Switching preselection - Manual switch with 3 positions:Permanent ON/AUTO/permanent OFF - Switching status display - Daily program - With power reserve (NiMH rechargeable battery) - 96 switching segments - Quartz controlled - Shortest switching time: 15 minutes - Clock hands for time display and in addition 12/24 hour recognition - Simple summer/winter time correction Technical Data: Operating voltage110-230 V AC Frequency50-60 Hz Width3 modules Installation typeDIN-rail ProgramDaily program Power reserve– 200 hours Max. switching capacity at 250 V AC, cos φ = 116 A Max. switching capacity at 250 V AC, cos φ = 0.64 A Shortest switching time15 min Programmable every15 min Time accuracy≤ ± 1 s/day(Quartz) Power consumption1.5VA Type of protectionIP 20 Protection classII in accordance with EN 60 730-1 Ambient temperature–20 °C … +55 °C
