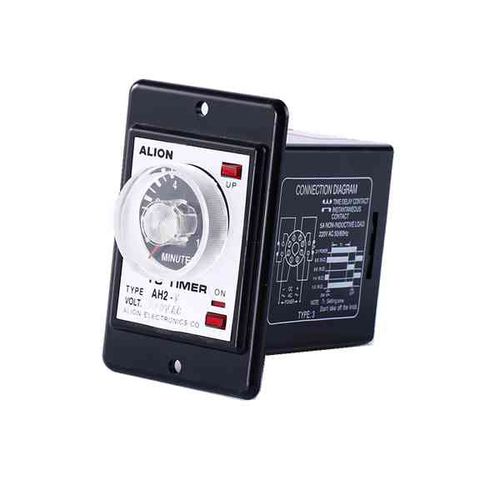

Analog timer AH2

multi-functionadjustable

The AH2 series analogue timer is a time-limited type of timer. It have a variety of time setting ranges and voltages you can choose, it mainly used for equipment control. Description: - Using CMOS IC lower power consumption high reliability and stability - 15 different time ranges from 0.1 sec to 24 hrs available (Each time range the product is individually customized) - Power Supply Non universal voltage: AC(V) 12 ,24, 110, 220 ,240 50/60Hz , DC(V) 12, 24 - Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load. - Front panel mounted with a P3G-08/US-08 Socket ). - On-Delay version - One delayed contact (SPDT Relay) + One instantaneous contact (SPDT Relay) Output - Large and easy to read dial shows decimal points - Two Leds provide status indication for ON-OFF operations Technical Data: Dimensions88H×58W×68D Mounting & Socket Flush(-Y) US-08 P3G-08 Full timing range SEC:1,3,6,12,30,60 MIN:3,6,12,30,60 HR:3,6,12,24 Rated voltage DC(V):12 24 AC(V):12 24 110 220 240 50/60Hz Indicator operatingON-UP Two indicator Lamp Contact O/PTime limit 1C Instantenous 1C 5A Resistive load. Life Mechanical 5×106times Electrical 1×105times Accuracy Repeat error ±1%max Setting error ±10%max Voltage error ±1%max Temp.error ±2%max Reset time0.1sec max Consrmed power3VA Ambient temperature-10℃~+55℃ Ambient humidity48~85%RH Weight220g
