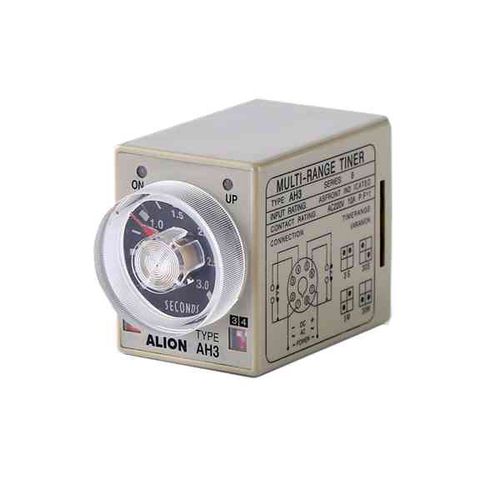

Analog timer AH3

lighting

- Using CMOS IC lower power consumption high reliability and stability - 5(A, B, C, D, E)timing series available (Each timing series the product is individually customized) (AH3-O-A,AH3-O-B,AH3-O-C,AH3-O-D,AH3-O-E) - 20 different time ranges from 0.1 sec to 30 hrs available (Each time period specifications have 4 different time ranges ) - Power Supply Non universal voltage: AC(V) 12 ,24, 110, 220 ,240, 380 50/60Hz,DC(V) 12, 24 . - Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load. - Socket mounted with a PF083A Socket - On-Delay version AH3-1: One delayed contact (SPDT Relay) Output AH3-2: Two delayed contact (DPDT Relay) Output AH3-3: One delayed contact (SPDT Relay) + One instantaneous contact (SPDT Relay) Output - Large and easy to read dial shows decimal points - Two Leds provide status indication for ON-OFF operations Technical Data: Dimensions50H×40W×57.5D Mounting & Socket Surface(-N) PF083A(E) Flush(-Y) US-08 P3G-08 Full timing range A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H Rated voltage DC(V):12 24 AC(V):12 24 110 220 240 380 50/60Hz Indicator operatingON-UP Operating Contact O/P AH3-1:Time limit 1C; AH3-2:Time limit 2C; AH3-3:Time limit 1C Instantaneous 1C; 5A resistive load. Life Mechanical 5×106times Electrical 1×105times Accuracy Repeat error ±1%max Setting error ±10%max Voltage error ±1%max Temp.error ±2%max Reset time0.1sec max Insulation resistance100MΩ(DC 500V)min Dielectric strength1500VAC Consrmed power2VA Ambient temperature-10℃~+55℃ Ambient humidity48~85%RH Weight160g
