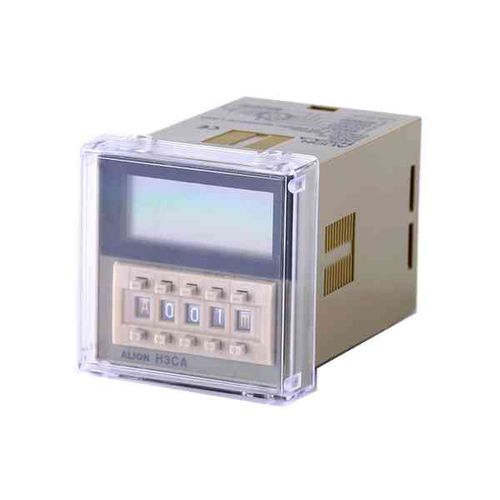

Digital timer H3CA-8

multi-functiontime delay

The H3CA-8 Multi-function digital timer is a time-limited type of timer. It have a variety of time setting ranges and voltages you can choose, it mainly used for equipment control. Description: - DIN-sized (48 x 48mm) Timer with Digital Setting and LCD Display - High accuracy time delay - Any desired time can be set digitally within a range from 0.1 seconds to 9,990 hrs. - Power Supply Non universal voltage: AC(V) 12 ,24, 110, 220 ,240 50/60Hz, DC(V) 12, 24 . - Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load. - Front panel or socket mount - When panel-mounted with a US-08 Socket - Socket mount with a PS-08 Socket - On-Delay version - Two delayed contact (DPDT Relay) Output - ON/OFF indicator for control output and bar indicator for remaining time. Technical Data: Dimensions48H×48W×81.6D Mounting & Socket Surface(-N) PS-08 P2CF08 Flush(-Y) US-08 P3G-08 Full timing range 0.1SEC~9990HRS Rated voltage AC(V):110~240(50/60Hz) 12VDC,24VDC/AC (50/60Hz)24to240V DC/AC DisplayLCD Contact O/PTime limit 2C 5A Resistive load. Life Mechanical 5×107times Electrical 1×105times Accuracy Repeat error ±0.5%max Setting error ±0.5%max Voltage error ±0.5%max Temp.error ±0.5%max Reset time0.5sec max Insulation resistance100MΩ(DC 500V)min Dielectric strength1500VAC Consrmed powerAC≈5VA DC≈1.5W Ambient temperature-10℃~+55℃ Ambient humidity35~85%RH Weight100g
