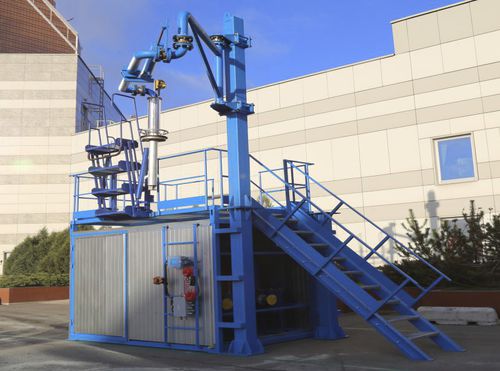

Oil dispensing station

Oil Distributing Station is designed to distribute the oil to trailer tank with a high-accurate measurement, safe operation and automatic control system, now it is widely used in oil depot. Technical performances: » Size: 3 inch, 4 inch, 6 inch » Flow rate: 500-2000 L/ M » Accuracy:<0.3%(LC meter), <0.1%(Mass flow meter) » Ambient Temp:-20℃~+50℃ » Working Pressure: <1.0MPa » Power supply: AC220V, AC380V » Level of Protection: IP54 » EX Level: ExdllBT4 » With ATC function » With LTMS and APP management system » All report » Touch screen with user interface » Extra display available » RS-485 Modbus communication » Support 4 Loading arm working at same time » Self-Diagnostics » 3 Level Password control » IC/ID control card Main Component: » Electronic register with density, pressure, temperature, level sensor » Overfill, static, fire monitor and alarm system » EX proof Emergency stop » Loading Arm » Flow meter: Mass flow meter / LC flow meter » Filling Platform with ladder(Main structure) » Centrifugal Pump with EX motor » Solenoid valve » Filter ,Flange , pipeline and other fittings
