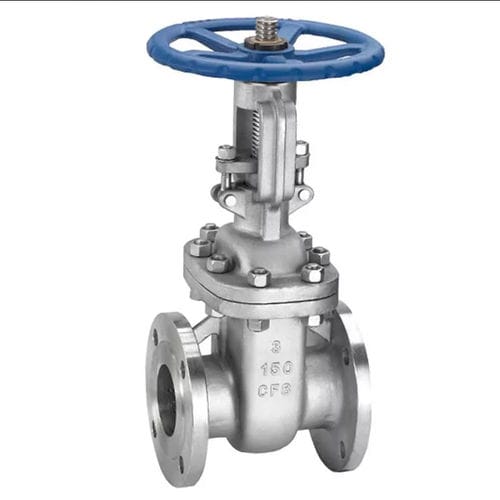

Gate valve with handwheelflangethreaded
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel
- Body
- flange, threaded, welded, cast steel
- Applications
- for the chemical industry, for pipelines, for oil industry applications, for the gas industry, for marine applications, refinery, power line
- Other characteristics
- ANSI
- DN
Max.: 40 in
Min.: 2 in
- Temperature
Max.: 450 °C
(842 °F)Min.: -29 °C
(-20 °F)
Description
Design Standard
ANSIB16.34,API600 API6D,API603,BS1414
CLASS 150~2500 CAST STEEL GATE VALVE
OS&Y,Rising stem,Flexible Wedge
Bolted Bonnet,Threaded or welded seat ring
ASTM A216 WCB,A217 WC6,A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M
Standards compliance
Design and Manufacture:ANSIB16.34,API600 API6D,API603,BS1414
Face to face(end to end):ANSIB16.10,API6D
Flanged connection:2″~24″to ANSIB16.5,22″,26″~36″to MSS-SP-44 to API605 on Request
Test and inspection:API598,API6D
Butt welded end:ANSIB16.5
A.Anti-friction ball thrust bearing:Reduces friction between mating parts to ensure smooth operation
B.Grub screw:Secures yoke nut in the bonnet
C.Grease nipple:Supplies lubricant to the mating parts
Advantage:
Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable.
Quality Control: We have been engaged in valve design for many year and can guarantee best quality
Experienced Sales Team: Our sales team is experienced, and they all know our product well.
