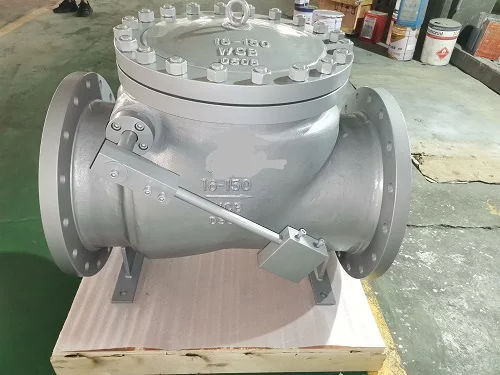

Swing check valve DINflangeweld
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Connexion
- DIN
- Body
- flange, weld
- Applications
- for the chemical industry, for oil industry applications, for pipelines, for the gas industry
- Material
- stainless steel, steel, alloy, carbon steel
- Other characteristics
- standard, pressure seal, heavy-duty
- DN
Max.: 900 mm
(35.433 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 160 bar
(2,320.6 psi)Min.: 10 bar
(145 psi)
Description
Bolted Bonnet or Pressure Seal Bonnet
Coating: Standard Paint Coating
Design Prohibits Galling or Scoring of Seating Surfaces
Large-sizes Are Provided With Lifting Rings for Easy Hoisting
One-Piece Disc Construction Designed to Withstand Severe Service Conditions.
End Type: RF, FF, RTJ, BW
Technical Specifications
Design and Manufacture: API6D , BS1868 or DIN3840
Pressure-Temperature Rating: ASME B16.34
Face to Face Dimensions: ASME B16.10 or DIN 3202
Flange Ends Dimensions: ASME B16.5 , ASME B16.47 or DIN 2543 ~ 2546, EN1092-1
Butt-Welding Ends: ASME B 16.25 or EN 12627
Inspection & Test: API 598 or DIN 3230
