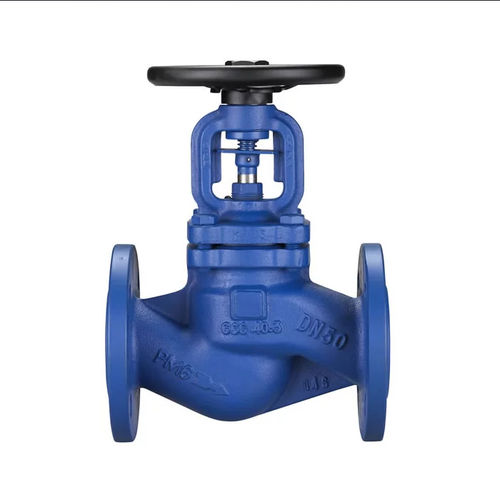

Globe valve with handwheelflangewelded
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Body
- flange, welded, stainless steel, carbon steel, steel, bronze, alloy, cast steel, copper, forged steel
- Applications
- for the chemical industry, for pipelines, for oil industry applications, for the gas industry, for marine applications, refinery, power line
- Other characteristics
- DIN, standard, integral
- DN
Min.: 15 mm
(0.591 in)Max.: 400 mm
(15.748 in)- Pressure
Min.: 16 bar
(232.1 psi)Max.: 100 bar
(1,450.4 psi)
Description
Seat sealing: Metal
Bellow Materials: SS304 ,SS316 or other materials requirements.
Connection: RF, RTJ, BW
Features:
Zero stem emission
Flexible graphite stem packing secondary seal
Welded seat ring or integral body seating surface
8,000 cycles bellow life without failure
Non-rising stem
Bellow materials like SS304 ,SS316L, SS321, Inconel,
Application Standard:
Design and Manufacture: DIN13709, BS 1873,API 602
Face-to-face Dimension: EN558-1, API, EN, GOST etc.
Flange Ends:DIN 2543-2545, EN1092-1, API, EN, GOST etc.
Inspection Test : EN12266,API598
Certificate:EN 10204 type 3.1
Markings: MSS SP25
Materials: carbon steel, alloy steel, stainless steel, duplex steel,bronze, Inconel,Hastelloy,Monel, Incoloy etc.
Carbon Steel A105N,F11,F22,F5,F9 or WCB,WCC, WC6,WC9,C5, C12 etc.
Low Carbon Steel LF2 or LCB,LCC etc.
Stainless Steel F304,F316, F316L,F347 or CF8, CF8M, CF3M,CF8C etc.
Duplex Steel such as F51,F53, F55 or 4A,5A,6A, CD3MN, CD2MWCuN, CN7M (Alloy 20) etc.
Bronze C95800, RG5 etc.
Other special materials like Inconel 625 could be supplied by request.
