Butterfly valve
leverelectricfor water

butterfly valve
butterfly valve
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
lever, electric
Media
for water
Body
wafer, lug type, stainless steel, steel, alloy, cast steel, double-offset
Applications
chemical, for pipelines, for oil industry applications, for the gas industry, for marine applications, refinery, power line
Other characteristics
standard, high-pressure
DN

Max.: 60 in

Min.: 2 in

Pressure

Max.: 160 bar
(2,320.6 psi)

Min.: 16 bar
(232.1 psi)

Description

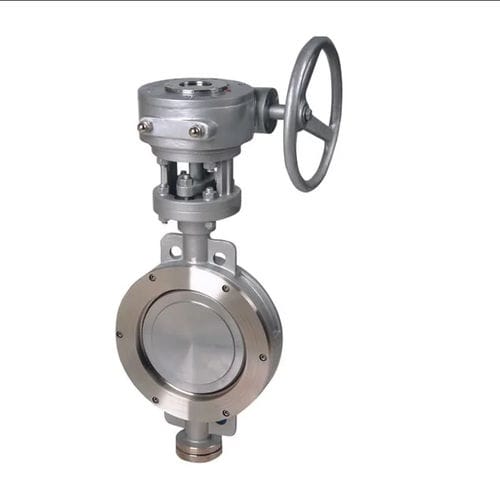

Features: The double offset butterfly valve the design is stem center line deviated body center line and stem center is deviated seat sealing center. This structure is normally RUBBER,PTFE/RPTFE or PTFE+SS sound sealing performance. It is mainly used for system drainage of water plants, power plants, steel mill smelting, chemical industry, water source project, environmental facilities construction, etc. It is especially suitable for waterway pipelines and is used as regulation and interception equipment. Compared with the centre butterfly valve, the double eccentric butterfly valve is more resistant to high pressure, longer life and good stability. Pressure: Class 150LB ~ 600LB Connection: RF,Wafer,Lug Operation: Gear Operator, Lever Operator, Electric Operator, BS. Etc. Material: Cast Steel, Alloy Steel, Low Temperature Steel, Stainless Steel, Duplex Steel. Etc. Application Standard: Design:API609 Face-to-face:API609 Flanged Ends:ASME B16.5/B16.47 Inspection Test :API 598, Certificate:EN 10204 type 3.1 Markings: MSS SP 25
