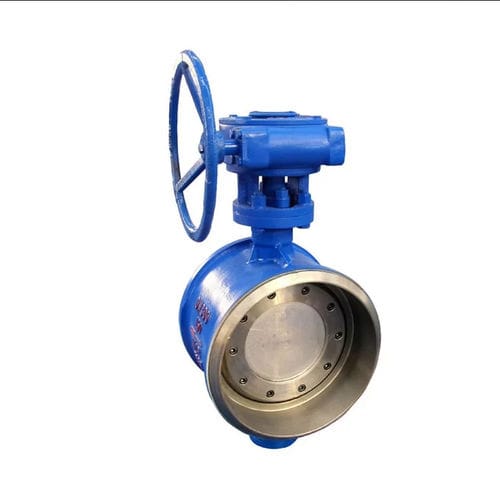

Butterfly valve leverregulatingfor water
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever
- Function
- regulating
- Media
- for water, petroleum
- Body
- weld, stainless steel, steel, alloy, cast steel, triple-offset
- Applications
- chemical, for pipelines, for oil industry applications, for the gas industry, for marine applications, refinery, power line
- Other characteristics
- standard, bidirectional
- DN
Max.: 48 in
Min.: 2 in
- Pressure
Max.: 160 bar
(2,320.6 psi)Min.: 16 bar
(232.1 psi)
Description
Features: Butterfly valve is for regulating or cut off in the pipeline and very low efficient cost. It is applied in a lot range of pipeline like petroleum,chemical, power plant,water supply etc.
The triple offset butterfly valve in laminated sealing reaches the bi-directional sealing zero leakage in both way,the valve sealing could be on the disc,body or the replaceable seat ring meet different choices.
Pressure: Class150Lb ~600LB
Connect end: BW
Material: Cast Steel, Low temperature steel, Alloy Steel, Stainless Steel. Duplex Steel. Etc.
Application Standard:
Design:API609
Face-to-face:API609
BW Ends:ASME B16.25
Inspection Test :API 598,
Temperature Ratings :ASME B16.34
Certificate:EN 10204 type 3.1
Markings: MSS SP 25
