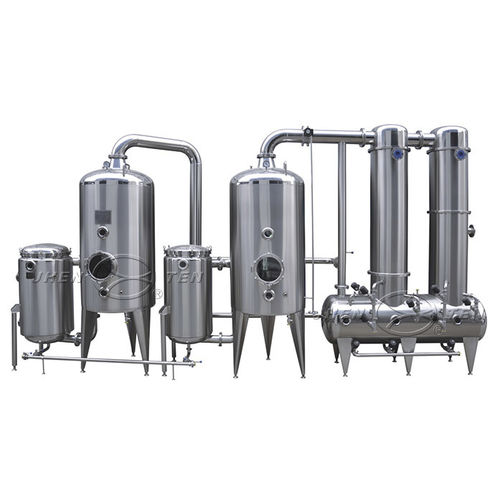

Concentrator for the food industry SJN-2 series

SJN Double-effect concentrator The design of the company's concentrating equipment has introduced a number of advanced technologies at home and abroad, and we has boldly innovated in the structure of the equipment. It adopts a sériés of new modernization concepts such as diversion tank circulation évaporation technology, fiat bottom évaporation technology, and plate heat exchanger condensation cooling technology. It has been fully tested during the actual use of the user. Equipment characteristics 1. - The evaporator inlet is designed as the introduction method of the diversion tank so that the vapor-liquid mixture enters the evaporator completely tangentially, and the mixture rotâtes from the top to the bottom of the evaporator along the inner wall. In the process, vapor nad liquid are fully separated and then the vapor is pumped away. 2. - The vapor-liquid mixture in the commonly used evaporator is input by a diagonal pipe, then vapor -liquid is rotated. Such a structure, because the tangential entry cannot be completely achieved, causes the material to directly impact the inner wall to generate vibration. 3. - The bottom of the evaporator is designed as a bow bottom type, which can make the material circulation effect better, and reduce the evaporator height under the same volume. The operator can stand on the ground to conveniently observe the operating condition in the evaporator. One operator can simultaneously operate multiple devices, and the labor intensity is reduced. 4. - The manhole of the evaporator is designed at the bottom, and the whole cover is made of glass. The observation effect is excellent and the evaporator is easy to clean.
