Multi-function tank JTRDC series

extractionfor chemicalsfor food

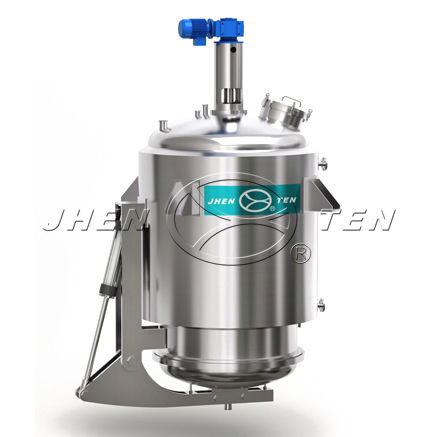

JTRDC Multi-function Extraction Tank Multi-function extraction tank is a mushroom round tank. The bigger upper part provides large boiling and baffling room to process ail material without leakage. The smaller lower part attribute to the quick heating advantage, short heating time and high extracting efficiency. Agitator or jacket type (tank body and the bottom head is equipped with the jacket and insulation layer) can be customized. Inner wall of tank body transition section adopts circular arc transition,, no dead corner, easy to clean; Tank inner wall are mirror polished, meeting the GMP standard. Multi-function extraction tanks can be designed as positive conical tank, mushroom type tanks, cylindrical tanks, oblique conical tanks and inverted conical tanks according to the customers' requirements. Feature • - There are varieties of volume from 2000L-8000L, also it can be designed and customized according to the customers' requirements. • - Pneumatic control self-locking type discharge door ensures no leakage and it is fast and safe under the sudden electricity off and gas off. • - Connector uses tri-clamp, inner tank use SS304 or SS316L, the inner surface mirror polishing Ra<0.28pm ~0.6pm. Outer surface can be polished, wiredrawn, sandblasted according to customer’s requirement. Tank Optional Configuration Optional Configuration: stérile air filter, thermometer (digital display type or dial), pressure gauge, sight glasses, sanitary manhole, in-outlet, CIP universal rotating cleaning bail, level gauge, etc., or configured according to customers' requirements.
