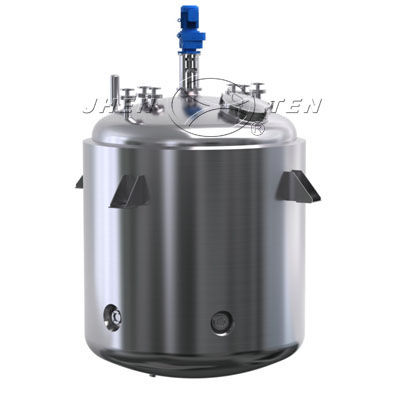

Photochemical processes reactor JTRFY series

for the pharmaceutical industrypressurestainless steel

JTRFY Reactor JTRFY reactor be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the Steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009), strictly meet to GMP certificate requirements. Jhenten reactor using vertical circular tanks, jacket can be made into a dimplejacket, coil jacket or the whole jacket, can heating or cooling, made of 316L or 304 stainless Steel ,inside surface electrolytic mirror polishing or mechanical polishing, the outer surface adopts 304,all welded surface mirror or inferior smooth Processing; Tanks welds adopt flanging process arc transition, smooth and easy to clean no dead corner, beautiful appearance. Tank Optional Configuration Reactor can configure aseptie air filter, thermometer(Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses, sanitary manhole, liquid in-outlet, CIP cleaning bail, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers' requirement. Application • Apply to petrochemical, fine chemistry, rubber industry, pesticide, dye, bio-pharmaceuticals and beverage, to complété the vulcanization, hydrogénation, alkylation, polymerization, condensation process.
