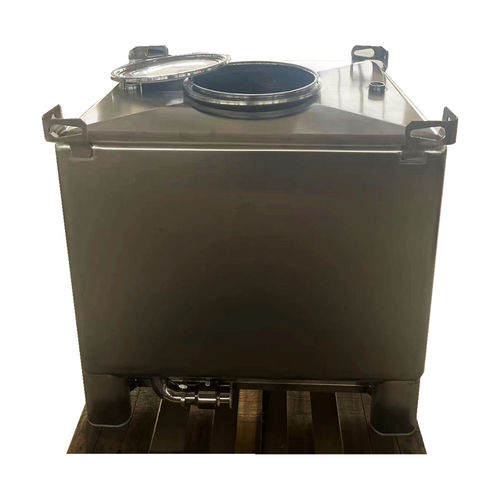

Stainless steel intermediate bulk container IBC-2
chemicalfoodfor corrosive liquids

stainless steel intermediate bulk container
stainless steel intermediate bulk container
stainless steel intermediate bulk container
stainless steel intermediate bulk container
stainless steel intermediate bulk container
stainless steel intermediate bulk container
stainless steel intermediate bulk container
Add to favorites
Compare this product


Characteristics

Material
stainless steel
Applications
chemical, food, for corrosive liquids
Other characteristics
storage, transport, handling, stackable, UN
Capacity

Max.: 5,000 l
(1,320.9 gal)

1,000 l
(264.2 gal)

Min.: 500 l
(132.1 gal)

Height

Max.: 980 mm
(38.5827 in)

975 mm
(38.3858 in)

Min.: 970 mm
(38.189 in)

Length

Max.: 1,145 mm
(45.079 in)

1,140 mm
(44.882 in)

Min.: 1,135 mm
(44.685 in)

Width

Max.: 940 mm
(37.0079 in)

935 mm
(36.811 in)

Min.: 930 mm
(36.6142 in)

Description

Stainless Steel chemical Liquid Transportation IBC Tank and storage IBC container An intermediate bulk container is a large vessel that is used to store fluid and bulk materials or transport them. IBCs can be manufactured from many different materials such as stainless steel, aluminum, mild steel, and exotic alloys. Intermediate bulk containers (IBCs) are an ideal alternative between a drum and a tank to transport or store fluid and bulk materials. SPECIAL FEATURES 1. Approval: UN 31AY,IMDG2006. 2. Material: Tank-0Cr18Ni9 ; Frame-SS400/Q345B;Seal gasket- FKM . 3. Tank finish: internal and external surface 2B; welding line with acid-washing. 4. Rated operation pressure:atmesphere pressure. 5. Relief valve:setting pressure(0.21bar), vacuum pressure(0.03bar);outlet :3PC ball valve. 6. Four way fork entry tubes;top lift. 7. Suitable for storage and shipment thinner or other paint(density≤1.5 g/ cm3 ) . Following specification can be adjusted according to your usage/requirement. If you have drawing/details/photos of tank, please kindly provide to us, we can produce and design your required IBC.: Easy to stack for transportation and storage (static load up to four high when filled); Multi-trip usage due to modular system; Easy replacement of components; UN approved for the transportation of dangerous goods; Fast to fill, easy to discharge at user site;
