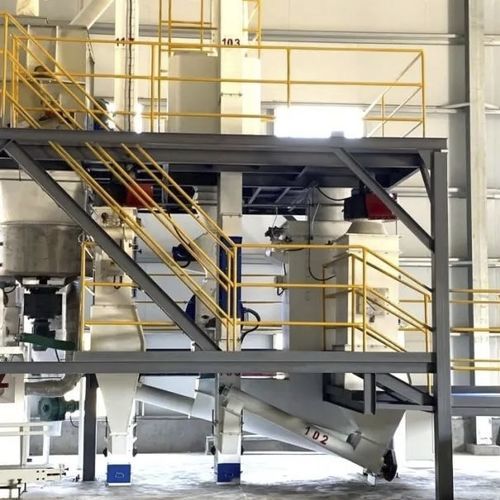

Organic waste treatment plant NC-BSF-TANK

NC-BSF-TANK system has below characteristics Negative pressure space is fully enclosed, man-machine separation. All the harsh working conditions do not require manual participation, the production environment is a negative air pressure environment, and the waste gas can be collected and treated efficiently. Highly automation. The automatic growing process only needs to input parameters on the computer, and the equipment can run automatically. At present, the links that need to be operated manually are as below: Hatching and breeding of eggs. Reassembly and release of low-instar larvae. Manual intervention under partial working conditions in the sorting process. Packing, sealing, transportation and packing of products. High efficiency and low failure rate. When the equipment is running, it can dispose of 100KG of organic solid residue (with a solid content of 25%) every 2 minutes, and produce about 20KG of fresh BSFL and about 18 KG of BSF frass that can be used as raw materials for organic fertilizer. Process The design boundary starts from the sorted kitchen waste which obtained 25% organic solid slag and 75% moisture, and after crushing and pulping. The whole process includes 5 parts: egg hatching, low instar larvae breeding(cultivation), automatic larvae growing, larvae sorting, processing, and deodorization. Black Soldier Fly household food kitchen waste disposal equipment solution
