Ultrasonic extraction unit TN series Ultrasonic Miniature

solventlaboratory

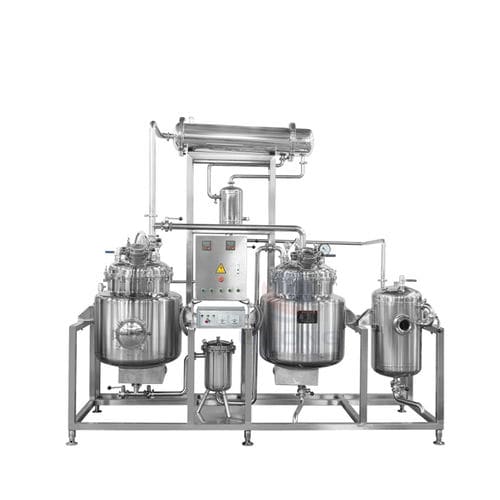

Multi-funtional extraction, concentration,recovery unit Application: Processing for tea, herb, etc beverage industry, liquid industry, food industry, pharmacy industry. Main configure: Extractor + condenser + (air and liquid) separator +control cabinet Material: SUS304 or SUS316L Capacity: 50L-500L More information for technical consultation Model - Extractor - Concentrator - Vacuum Pump Capacity (L) - Jacket Pressure (MPa) - Extractor Pressure (MPa) - Heating Area (m2) - Working Pressure (MPa) - Vacuum (MPa) - Voltage (V) - Power (kw) TN-50 - 50 - 0.2 - 0.09 - 0.5 - Normal - -0.08 - 380 - 4 TN-100 - 100 - 0.2 - 0.09 - 1 - Normal - -0.08 - 380 - 4 TN-200 - 200 - 0.2 - 0.09 - 1.5 - Normal - -0.08 - 380 - 4 TN-300 - 300 - 0.2 - 0.09 - 2 - Normal - -0.08 - 380 - 4 TN-400 - 400 - 0.2 - 0.09 - 25 - Normal - -0.08 - 380 - 5.5 TN-500 - 500 - 0.2 - 0.09 - 3 - Normal - -0.08 - 380 - 5.5 Warranty: One year after receiving equipment, offer life long after sale service. Installation and commissioning: We can send professional engineer to install and commission the equipment. Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 24 hours except the special reasons. Inspection: the third party inspection company or yourself to inspect the products before shipment. Documentation: User manual, Maintenance manual, Equipment test report, etc. FAQ: 1. Are you a factory or trading company? We are a factory 2. How long is the warranty period? One year 3. What's the main market of your company? We have customers all over the world 4.What's your delivery time? Normally it is around 30 days, the exact time depends on product type and quantity. 5. What's the payment terms? TT, etc
