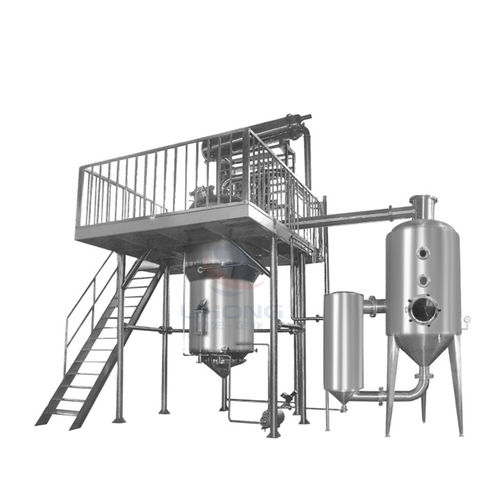

Hot-reflux concentrator Extraction Concentrator

vacuumfor the pharmaceutical industrymedical

Thermal Circumfluence Extraction & Evaporation Pot Application: Widely used in herbal medicine, Chinese traditional drug, animal drug, food additional to extract with water, ethanol, carbinol and acet and to reclaim and concentrate the organic solvent. Configure: Extractor+ condenser+received tank+ separater Specification: 0.5~6Ton Material: SUS304 SUS316L Steam heating Working platform ( Stainelss steel or cabone steel) Finshi: External: Matt, internal: Mirror GMP standards More information for technical consultation Extractor tank volume - 1, 2, 3 and 6 cubic meters Concentrator tank volume - 0.5, 1, 1.5 and 2.5 cubic meters Water distillation temperature - 90 to 100 Degree C Alcohol distillation temperature - 78 to 83 Degree C Distillation time - 4 to 5H/B Vacuum - 0.05 to 0.08Mpa Working pressure - 0.08 to 0.2Mpa Warranty: One year after receiving equipment, offer life long after sale service. Installation and commissioning: We can send professional engineer to install and commission the equipment. Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 24 hours except the special reasons. Inspection: the third party inspection company or yourself to inspect the products before shipment. Documentation: User manual, Maintenance manual, Equipment test report, etc.
