Milk Cooling Tank
Tank part:
Capacity: 250Liter ~20,000liter
TANK Part: SS304
Temperature keeping Material: PU foam

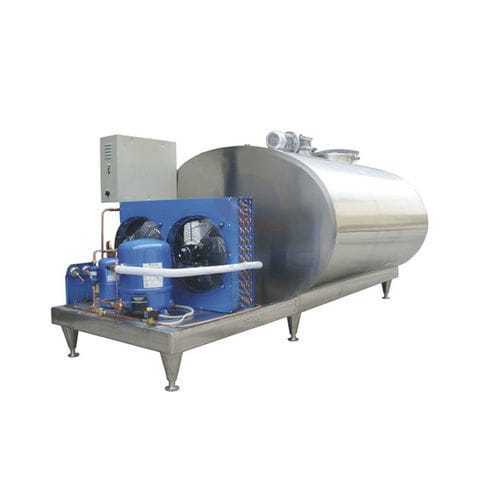

LH-Sanitary Cooling Tank
1. Introduction:
LH Sanitary Cooling Tank is mainly used in preserving and storing fresh milk or other fresh liquid. It fully used the international advanced technology, adopts importing European Maneurop (non-fluorine) refrigerator and safety and protection system, imported advanced technique.
So it's the ideal cooling and storage equipment for pasture, milk station, milk factory, food factory, and beverage factory and pharmacy industry.
2. Tank part
Vol: 250L~20,000L
Material: SUS304
Isolation material: PU foam
3. Cooling system
Compressor: Maneurop
Refrigerant: R404A or R22
This system can cooling large area of the inside pot surface, utilizing the automatic computer control system to observe and operate, which can quickly lower the temperature to 4º Cand keep to this constant temperature, that prevent from the growth of the bacteria.
ITEM - Vessel Capacity(L) - Refrigeration power (W) - Rotation
speed - Matched power - L× W× H - Refrigerant - Power supply
LH-M0.5 - 500 - 5322 - 33r/min - 3KW - 2200× 1350× 1150 - R404A(R22) - 380V/3/50Hz
LH-M1 - 1000 - 8842 - 33r/min - 4.5KW - 2200× 1350× 1550 - R404A(R22) - 380V/3/50Hz
LH-M1.5 - 1500 - 9214 - 33r/min - 5KW - 2200× 1200× 1750 - R404A(R22) - 380V/3/50Hz
LH-M2 - 2000 - 16221 - 33r/min - 6KW - 3300× 1500× 1700 - R404A(R22) - 380V/3/50Hz
LH-M2.5 - 2500 - 16221 - 33r/min - 7KW - 3700× 1450× 1500 - R404A(R22) - 380V/3/50Hz
LH-M3 - 3000 - 17221 - 33r/min - 7KW - 3950× 1500× 1700 - R404A(R22) - 380V/3/50Hz
LH-M4 - 4000 - 21500 - 33r/min - 14kw - 3950× 1900× 1850 - R404A(R22) - 380V/3/50Hz
LH-M5 - 5000 - 28442 - 33r/min - 14KW - 4200× 2100× 2000 - R404A(R22) - 380V/3/50Hz
