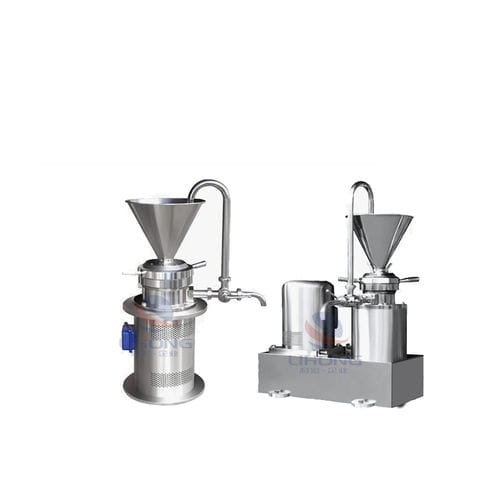

Colloid grinding mill Colloid Mill

cuttingvertical380V three-phase

◆ Treatment ability: 500 liters / hour ~ 20,000 liters / hour ◆ Type: vertical split ◆ Fine: 2 ~ 50 UM The working principle of colloid mill is shearing, grinding and high-speed stirring. Grinding depends on the relative movement of two tooth surfaces, one high-speed rotation in the base, the other is stationary, enabling, through the shear force and friction of the material between the tooth surfaces, and at the same time, under the action of complex forces such as high-frequency vibration and high-speed vorticity, the material is dispersed, emulsified, crushed and homogenized. Model Ltem - EM engraved CakNDTUR; - Treatment (T / H) - Roster Mllstone DLA (mm) | - Lnlet DIA (mm) - Outiet DIA (mm) - REV (rpm) .JM-50 - 2-50 - 0.01-0.05 - 50 - 25 - 15 - 2900 .Jn-60 - 2-50 - 0.02-0.2 - 60 - 32 - 18 - 2900 .Jn-65 - 2-50 - 0.2-0.5 - 65 - 47 - 20 - 2900 JM-80 - 2-50 - 0.5-1 - 80 - 47 - 20 - 2900 JM-100 - 2-50 - 0.5-2 - 100 - 65 - 30 - 2900 JM-120 - 2-50 - 0.7-2.5 - 120 - 65 - 30 - 2900 JM-130 - 2-50 - 0.7-3 - 130 - 65 - 30 - 2900 JM-140 - 2-50 - 1-4 - 140 - 66 - 32 - 2900 JM-18C - 2-50 - 2-6 - 180 - 90 - 40 - 2900 JM-200 - 2-50 - 2-10 - 200 - 100 - 50 - 2900
