Beer fermenter Fermentation Tank 250-10000L

winecone-bottom

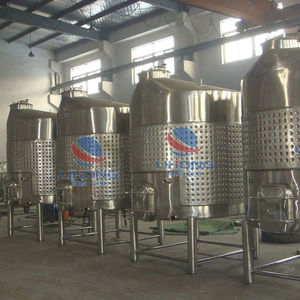

Beer Fermentation Tank 1. Usage This Fermentation Tank is widely applied in beer production line. It can be used as both fermentation tank and storage tank. 2.Constructure and advantage 1) The tank has dish top, cylinder body and 60-70° cone bottom. The tank body has interlayer and cooling jacket. The tank body, upper and lower closure heads(or taper) all adopt spinning R-angle processing. The internal wall of the tank has got mirror polishing with finish Ra≤0.4μm. The temperature insulation material adopts high efficiency polyurethane foam. 3) It is equipped with devices including manhole, air respirator, cleaning ball, sanitation inlet, sampling valve, thermometer, pressure gauge, viewing mirror, and viewing lamp. The fermentation process of beer, fine chemical engineering and biological products is aseptic and untainted. The parts that contact materials are all made of stainless steel SUS304. External surface adopts sand grinding surface polishing treatment. All is in accordance with GMP standard. The tank uses tri-clover connection for the sockets. Capacity - 300L-20,000L Application - Winery and brewery storage and fermentation Material - SUS304-2B, or SUS316L Construction - a. Dimple pad cooling jacket in the tank body and conical bottom, efficiently cooling the tank in all the parts b. Cooling exchanging areas are available in different design c. Conical bottom in 60 degree(70 or 90, due to different design) , it is design for the yeast fermentation processing d. Temperature insulation: PU foam Socket - Manhole, CIP hole, temperature probe, sampling socket, etc
