Vacuum concentrator QN series Spherical Evaporator 300-1000Lfor the food industryfor the pharmaceutical industrydistillation
Add to favorites
Compare this product
Characteristics
- Options
- vacuum
- Domain
- for the food industry, for the pharmaceutical industry
- Other characteristics
- distillation, decompression
Description

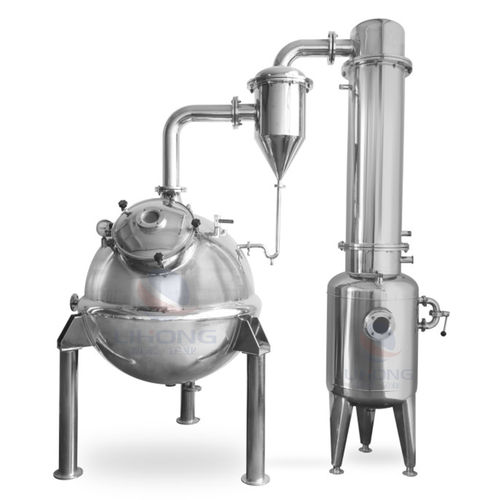

Spherical Vacuum Concentrator
Material: SUS304 or SUS316L
Condenser type: tubular type
Finish: internal mirror polish
External: matt GMP standard
Capacity: 0.1 to 3T
Applications: pharmacy, beverage and liquid industries
Concentration tank condenser, (gas and liquid) separator, cooler and liquid receiving tank
Model - QN-300 - QN-500 - QN-700 - QN-1000
Evaporating capacity(kg/h) - 70 - 120 - 145 - 195
Capacity(L) - 300 - 500 - 700 - 1000
Steam pressure(MPa) - 0.09
Vacuum degree(MPa) - -0.08
Heating area(m 2 ) - 1.3 - 1.5 - 2 - 2.8
Condensing area(m 2 ) - 2.4 - 3 - 3.5 - 4
Dimension - Length - 1900 - 2030 - 2100 - 2335
Width - 1100 - 1200 - 1300 - 1520
Height - 2300 - 2500 - 2600 - 2765
