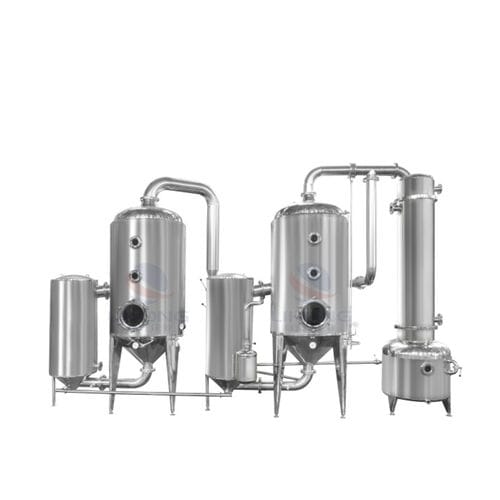

Dual-effect concentrator SJN series

for the food industryfor the pharmaceutical industry

Double Effect Concentrator The equipment is suitable to concentrate Chinese traditional drug, western drug, dextrose, amylum, monosodium glutamate, food and milk products, and chemical materials It is especially suitable to concentrate thermal sensitive materials under low temperature and vacuum. The heating way is external circulation steam heating, the concentration is under vacuum negative pressure, which makes a fast concentration speed, the concentration proportion can be 1.2-1.35. The first and second effect are concentrating at the same time, the vapor after first effect is used again at second effect, saves the vapor, compares to the single effect concentrator, the energy consumption is 50% less, client can recover the equipment investment by the energy saving fee less than one year. Multi-functional character: 1) the concentration of recovered alcohol is about 80%; 2) The output of first effect and second effect can be at same time; 3) Batch input or continuous input are both ok. Because of the special design, the product concentrated has advantages like strong flavour, well-proportioned quality. The material is concentrated under hermetic foamless condition, no leakage and less pollution, the material intraday is concentrated intraday, noncaking, easy cleaning(open heater's top and bottom lid to clean), saves labor force, one people can operate. Material of parts that contact product are SUS304(or SUS316L) material, the heater and evaporator are with temperature insulation layer, the temperature insulation material is PU foam, the finish of external surface is satin finish, meets GMP pharmaceutical standard. Model from 500-3000L
