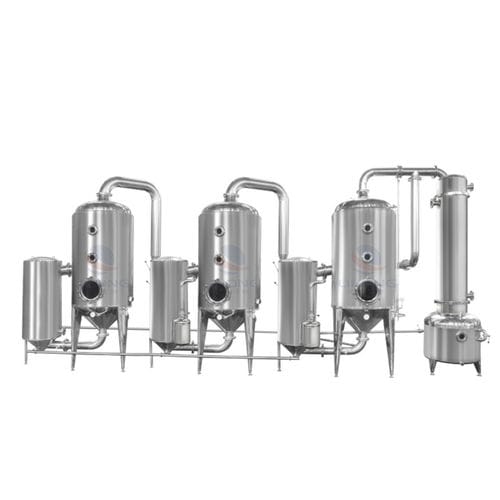

Multiple-effect concentrator SJN series

vacuumfor the food industryfor the pharmaceutical industry

SJN Series Triple-Effect Evaporator Concentrator Application: This distillator is suitable for distillating liquid material, it is widely used in industries like Chinese traditional medicine, western medicine, food, dairy, glucose, starch, chemical, etc. It is especially suitable for thermal sensitive products with low temperature vacuum distillation. Material: SUS304 or SUS316L. Evaporation capacity: 0.3Ton ~3Ton Heating way: Steam heating Low temperature vacuum concentration processing Finish: Internal surface is mirror polished, external surface is matt finish. Standard: meets GMP standard Technical Parameters: Item/Spec - SJN-500 - SJN-1000 - SJN-1500 - SJN-2000 - SJN-3000 Steam pressure (MPa) - 0.09 Distillation capacity(kg/h) - 500 - 1000 - 1500 - 2000 - 3000 Steam consumption(kg/h) - 200 - 400 - 600 - 800 - 1200 Circulation water consumption(t/h) - 5 - 10 - 13 - 15 - 18 Concentrating TEMP-1st effect(ºC) - 80-90 Concentrating TEMP-2nd effect(ºC) - 65-80 Concentrating TEMP-3rd effect(ºC) - 55-65 Vacuum degree-1st effect(MPa) - -0.04 Vacuum degree-2nd effect(MPa) - -0.06 Vacuum degree-3rd effect(MPa) - -0.08 Dimension - L - 5000 - 6500 - 7000 - 7500 - 7800 W - 1300 - 1500 - 1700 - 2000 - 2000 H - 3000 - 3300 - 3500 - 4000 - 4300 Equipment type - Normal Pressure Vessel
