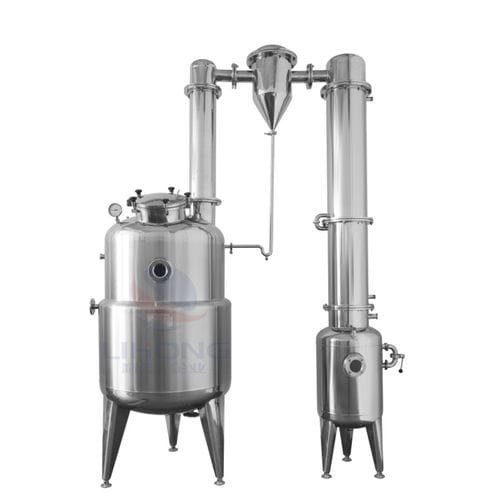

Vacuum concentrator Zn series

for the food industryfor the pharmaceutical industrydecompression

Vacuum Pressure Reduction Concentrator Evaporator Fact part in contact with material is made with stainless steel SUS316L (or SUS304) brings qualified anti-corrosion performance, meeting with the GMP standard Device is suitable to concentrate in pharmacy, foodstuff, chemistry and also can serve as reclamation of alcohol and simple reflux extraction Configure: Concentration tank, condensator, (gas and liquid) separator, cooler and liquid receiving tank. Condensator type: Tubular type Finish: Internal Mirror polish External: Matt GMP standard. Item/Spec - ZN-50 - ZN-100 - ZN-200 - ZN-300 - ZN-500 - ZN-700 - ZN-1000 - ZN-2000 Concentrating capacity(kg/h) - 20 - 40 - 60 - 80 - 100 - 130 - 160 - 350 Steam Pressure(MPa) - 0.09 Heating area(m2) - 0.4 - 0.6 - 0.8 - 1.1 - 1.2 - 2.0 - 2.5 - 5.5 Condensing area(m2) - 1.2 - 1.7 - 2.4 - 3.0 - 3.2 - 3.6 - 4.5 - 14 Cooling area(m2) - 0.25 - 0.35 - 0.45 - 0.6 - 0.7 - 0.85 - 1.1 - 3 Receiving tank(L) - 15 - 45 - 60 - 76 - 100 - 125 - 140 - 185 Consumption(kg/h) - 23 - 46 - 70 - 92 - 115 - 150 - 185 - 403 Vacuum Degree(MPa) - -0.08 Equipment type - Normal pressure vessel Dimension(mm) - L - 1200 - 1350 - 1700 - 1800 - 2100 - 2400 - 2490 - 2730 W - 600 - 750 - 800 - 950 - 1200 - 1300 - 1300 - 1500 H - 2200 - 2200 - 2700 - 2850 - 3400 - 3400 - 3720 - 4700
