Water storage tank

for the pharmaceutical industryalcoholstainless steel

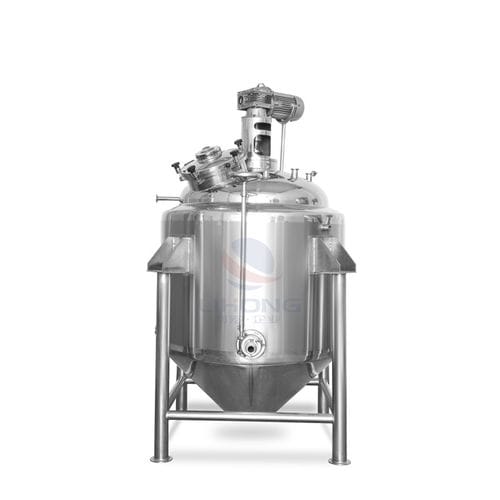

Alcohol Precipitating Tank The device is suitable for alcohol deposition in such industrials as China traditional drug, oral liquid, foodstuff, health product, chemistry. The alcohol deposition tank is a special device for alcohol deposition, also titled solvent change or alcohol bar. It is mainly used to freeze the solution from concentration of water-decocted China traditional drug or make alcohol deposition under normal temperature, also to execute the water deposition of the concentrated liquid after the alcohol deposition of China traditional drug. The device includes the ellipse seal head with clip sleeve, taped-shaped base of cylinder, inner-installed three-paddle miller and special finely-regulated revolve-out liquid pipe, etc. The mode for water-decocting and concentration of China traditional drug as follow: First fill the alcohol to form mixture, secondly under low temperature freeze to make deposition to separate the solid from the liquid to improve the purity and clearness of the extraction liquid of China traditional drug. The device is made with stainless steel of SUS304. The high pressure automatic spray & cleaning system is available. It is available to fill the low temperature of cooling water through the clip sleeve. Item/Spec - JC-300 - JC-500 - JC-1000 - JC-1500 - JC-2000 - JC-3000 - JC-6000 Capacity(L) - 300 - 500 - 1000 - 1500 - 2000 - 3000 - 6000 Heat transfer area(m2) - 1.8 - 3.0 - 4.5 - 5.4 - 6.2 - 8.1 - 12 Working TEMP(ºC) - -15~25 Heating transfer media Working PRE(MPa) - 0.25 Working PRE(MPa) - 0.09 Motor(kw) - 0.75 - 0.75 - 1.5 - 1.5 - 2.2 - 3 - 4 R.E.V(r/min) - 32 Heat transfer coefficient(K) - 150-200 Weight(Kg) - 450 - 500 - 580 - 630 - 910 - 1410 - 2080
