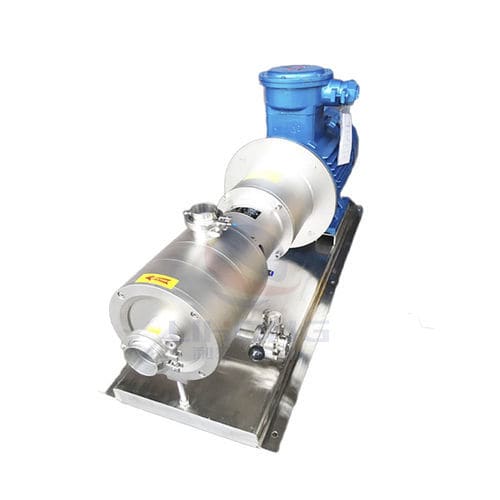

Emulsion pump LHRHP3 series

waterfor chemicalsfor food products

Stainless Steel Emulsification Pump Material: SS304 SS316L Motor Power:4-185kw Speed:1480/2800rpm Flow:0-4 to 0-140 T/h Emulsified pump - multi-stage emulsified pump, its working cavity consists of three-stage rotor, stator total 12-layer, multi-stage emulsified pump material is scattered, fine, emulsified step by step by rotor, stator, improved production efficiency, multi-stage emulsified pump It is a high-efficiency ultra-fine homogeneous pump integrating mix, dispersion, breaking, dissolution, fine, decomposition, homogenesis, emulsification, and transport, and multi-level emulsion pumps further simplify and produce efficiency. A large increased, product quality is significantly improved, an ideal product that replaces sand mills, ball mills, colloid mills. The sealing device of the emulsified pump product uses a double end surface or a single-ended mechanical seal according to different characteristics of different materials, and the multi-stage emulsified pump can be configured in accordance with the user needs. Multi-stage emulsified pump products are suitable for large, medium-batch continuity online production or cycle treatment production process. Multi-stage emulsified pump tube line high shear dispersion emulsifier is a high-performance device for continuous production or circulation to handle fine materials. Inside the chamber of the narrow space, a multi-layered, rotor, rotor equipped with 1-3 sets of occasional occasion At high speed under driving, a strong axial suction is generated to inhale the material into the cavity. Dispersion, shearing, emulsion treatment in the shortest time, and the particle size distribution range also narrows.
