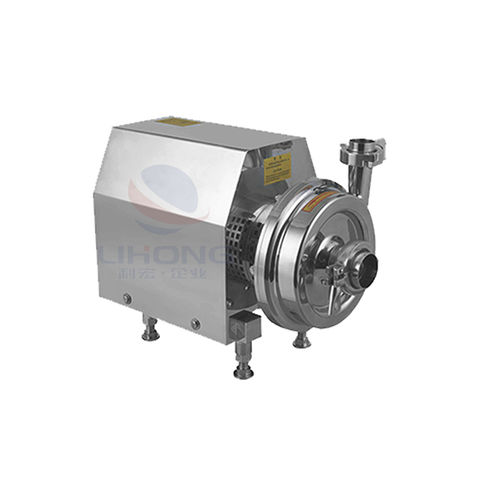

Alcohol pump waterfor food productselectric
Add to favorites
Compare this product
Characteristics
- Fluid
- water, alcohol, for food products
- Operation
- electric
- Technology
- centrifugal
- Mobility
- stationary, mobile
- Domain
- industrial, chemical, for the cosmetics industry, sanitary
- Applications
- suction, fermentation, high-purity
- Material
- stainless steel
- Voltage
- 380 V
- Other characteristics
- standard, high-efficiency
- Flow
Min.: 2 m³/h
(70.62933 ft³/h)Max.: 80 m³/h
(2,825.17334 ft³/h)- Head
Min.: 12 m
(39'04" )Max.: 40 m
(131'02" )- Power
Min.: 0.55 kW
(0.75 hp)Max.: 18.5 kW
(25.15 hp)- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 133 °C
(271.4 °F)- Input diameter
Min.: 32 mm
(1.26 in)Max.: 102 mm
(4.016 in)- Output diameter
Min.: 25 mm
(0.984 in)Max.: 89 mm
(3.504 in)
Description
Sanitary centrifugal pump application:
· Drugs: infusion, distilled water, high purity water, particles (3-6 mm) Chinese medicine liquid, leaching liquid.
· Cosmetics: dyes, alcohol, essential oil.
· Drink: Alcohol, liquor, beer, malt, fermentation, juice drink, with particle beverage.
· Dairy: Whey, Cream, Milk, Sugar
· Others: Candy Industry, Roasting, Chemical Fields, etc.
Selection instructions:
· Traffic: The intermediate section in the performance curve table is suitable.
· Working environment and media: Determine if explosion is needed.
· Working conditions: The hygienic centrifugal pump is high and low levels of water levels, non-self-suction. (Self-suction type selected self-suction pump)
· Pump body: According to the media requirements 316L and 304.
· Sealing material: Standard rubber seal is silicone rubber, select fluorofluoro rubber, three yuan ethylene, polytetrafluoro, butter according to media.
