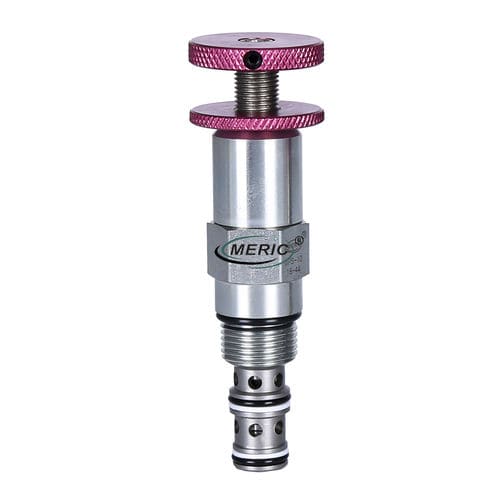

Sequence relief valve MPS-10 seriesflow-controlcartridge
Add to favorites
Compare this product
Characteristics
- Applications
- flow-control
- Other characteristics
- sequence, cartridge
- Controlled pressure
207 bar
(3,002.3 psi)- Flow rate
34 l/min
(8.98 us gal/min)
Description
Specifications
· Operating Pressure:207BAR
· Flow:34L/min
· Internal Leakage:82ml/min.max.at operating pressure
· Temperature: -40°C to +120°(-40°F to+250°F)
· Cavity:10-3
· Fluids:Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Features
· Hardened,precision ground parts for durability
· Industry common cavity
· Compact size
· Adjustment may be locked in place.
· Adjustment will not screw out of the valve body
Operation
In its steady state,the valve blocks flow at ① ,while allowing flow to pass from
② to ③ .On attainment of a pre-determined pressure at ① ,the cartridge shifts
to open ① to ② .
