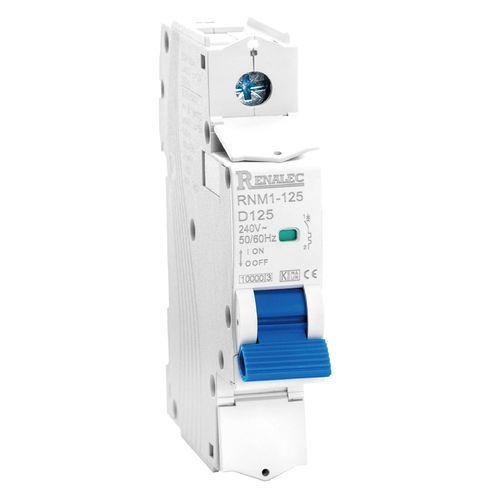

Thermal-magnetic circuit breaker RNM1-125-MCB
voltageoverloadmodular

Thermal-magnetic circuit breaker - RNM1-125-MCB - WENZHOU RENA ELECTRIC CO.,LTD - voltage / overload / modular
Thermal-magnetic circuit breaker - RNM1-125-MCB - WENZHOU RENA ELECTRIC CO.,LTD - voltage / overload / modular
Add to favorites
Compare this product


Characteristics

Type
thermal-magnetic
Electrical characteristics
overload, voltage
Operating mode
modular
Applications
distribution
Number of poles
3-pole, 2-pole, 4-pole
Other characteristics
DIN rail, MCB
Primary current

Min.: 1 A

Max.: 125 A

VAC

6 kV

Description

RNM1-125 ( from 1 to 125A, CURVES B, C and D, up to 10kA ) meets any requirement for protection against overload and short circuit for all household, commercial and industrial low voltage distribution systems. · Only 18mm for 1P, 36mm for 1P+N/2P, 54mm for 3P and 72mm for 3P+N/4P · Overloaded and short circuit protection ·Frame size: 45mm ·Device height: 77mm ·Device width: 18mm(1P), 36mm(2P/1P+N), 54mm(3P), 72mm(4P/3P+N) ·Installation: Quick fastening on 35mm DIN rail ·Mechanical life: ≥1,0000 ·Upper and lower terminals: Open mouthed/lift terminals ·Terminal protection: Finger and hand touch safe ·Terminal capacity: 1-50m㎡(1-125A) ·Degree of protection: IP20 ·Operating temperature: -25℃ ~ +40
