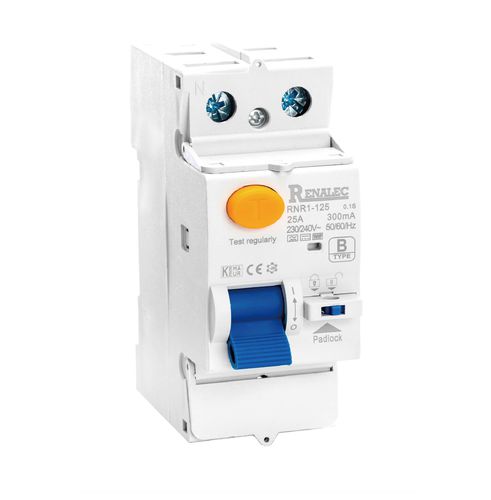

Magnetic circuit breaker RNR1-125(B type)-RCCBlow-voltageresidual currentdistribution
Add to favorites
Compare this product
Characteristics
- Type
- magnetic
- Electrical characteristics
- residual current, low-voltage
- Applications
- distribution
- Number of poles
- 2-pole, 4-pole
- Other characteristics
- compact
- Primary current
Min.: 25 mA
Max.: 500 mA
- VAC
240 V, 415 V
Description
ELECTRO-MAGNETIC RCCB RNR1-125 B type ( from 1 to 125A,up to 10kA ) meets any requirement for protection against residual current for all household, PV, EV charging, commercial and industrial low-voltage distribution systems. Saving 50% of space usage, it is easy to be assembled and works with the same series of compact circuit breakers together.
· Only 36mm for 1P+N and 72mm for 3P+N
· Protection for PV system, EV changing, electricity environment
· Rated breaking capacity: 10kA
· Rated current: 25/40/63/80/100/125A
· Rated Residual Operating Current: 10/30/100/300mA
· Handle with padlock to protect from error operation
· Termianls with cover protection
