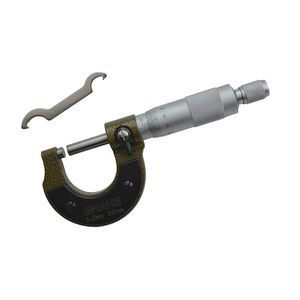

Outside micrometer SHAHE/5205-50 25-50mm 0.001mm ±0.003mm/Digital Micrometerdigitalhigh-precisionhigh-speed
Add to favorites
Compare this product
Characteristics
- Measurement
- outside
- Display
- digital
- Other characterisitcs
- high-precision, high-speed
- Measuring range
Max.: 50 mm
(1.969 in)Min.: 25 mm
(0.984 in)- Resolution
0.001 mm
(0.00004 in)
Description
Technical Data
1. Measuring range: 25-50mm
2. Resolution: 0.001mm
3. Accuracy: ±0.003mm
4. Measuring force: 5-10N
5. Power consumption: <=20uA
6. Storage temperature: -20℃-60℃
7. Operating temperature: 0℃-40℃
8. ON/OFF...SET key: Power switch, Datum set
9. ABS...in/mm key: Absolute and relative measuring
10. Quick display of the measured value on LCD screen, no over-speed error.
