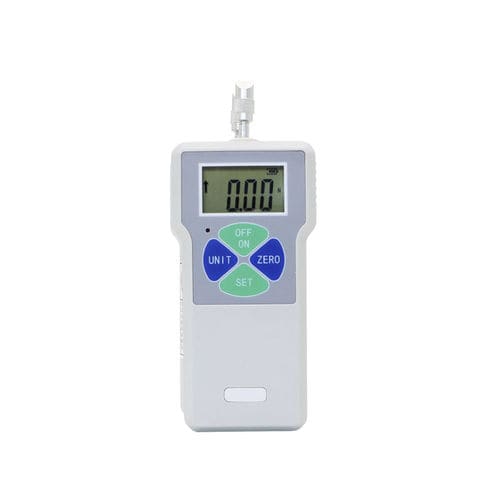

Digital force gauge SHAHE/ SF Series /Portable Digital Push Pull Force Gauge
portablecompact

Digital force gauge - SHAHE/ SF Series /Portable Digital Push Pull Force Gauge - Wenzhou Sanhe Measuring Instrument Co., Ltd - portable / compact
Digital force gauge - SHAHE/ SF Series /Portable Digital Push Pull Force Gauge - Wenzhou Sanhe Measuring Instrument Co., Ltd - portable / compact
Digital force gauge - SHAHE/ SF Series /Portable Digital Push Pull Force Gauge - Wenzhou Sanhe Measuring Instrument Co., Ltd - portable / compact - image - 2
Digital force gauge - SHAHE/ SF Series /Portable Digital Push Pull Force Gauge - Wenzhou Sanhe Measuring Instrument Co., Ltd - portable / compact - image - 3
Digital force gauge - SHAHE/ SF Series /Portable Digital Push Pull Force Gauge - Wenzhou Sanhe Measuring Instrument Co., Ltd - portable / compact - image - 4
Digital force gauge - SHAHE/ SF Series /Portable Digital Push Pull Force Gauge - Wenzhou Sanhe Measuring Instrument Co., Ltd - portable / compact - image - 5
Add to favorites
Compare this product


Characteristics

Type
digital
Options and accessories
portable, compact

Description

Technical Data: The Sensor: Sensor Inside Precision: ±0.5% Power: 3.7V lithium battery Charging Time: 4-6 hours Battery Life: ≥300 times Charger: Input: AC 100-240V 50-60Hz Output: DC 5V 1000mA Working Temperature: 5 ℃-35℃ Transportation Temperature: -10℃ -60℃ Relative Humidity: 15% -80% RH 1.Model: SF-2 Max. Load Value: 2N/0.2kg/0.45Lb Load Value: 0.001N/0.001kg/0.001Lb 2.Model: SF-3 Max. Load Value: 3N/0.3kg/0.65Lb Load Value: 0.001N/0.001kg/0.001Lb 3.Model: SF-5 Max. Load Value: 5N/0.5kg/1.1Lb Load Value: 0.001N/0.001kg/0.001Lb 4.Model: SF-10 Max. Load Value: 10N/1kg/2.2Lb Load Value: 0.01N/0.001kg/0.001Lb 5.Model: SF-20 Max. Load Value: 20N/2kg/4.5Lb Load Value: 0.01N/0.001kg/0.001Lb 6.Model: SF-30 Max. Load Value: 30N/3kg/6.5Lb Load Value: 0.01N/0.001kg/0.001Lb 7.Model: SF-50 Max. Load Value: 50N/5kg/11Lb Load Value: 0.01N/0.001kg/0.001Lb 8.Model: SF-100 Max. Load Value: 100N/10kg/22Lb Load Value: 0.1N/0.01kg/0.01Lb 9.Model: SF-200 Max. Load Value: 200N/20kg/45Lb Load Value: 0.1N/0.01kg/0.01Lb 10.Model: SF-300 Max. Load Value: 300N/30kg/65Lb Load Value: 0.1N/0.01kg/0.01Lb 11.Model: SF-500 Max. Load Value: 500N/50kg/110Lb Load Value: 0.1N/0.01kg/0.01Lb

Catalogs
