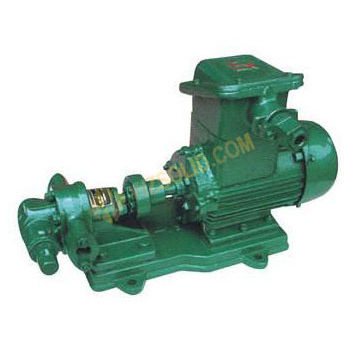

Lubricating oil pump KCB series

electricexternal-gearindustrial

Model NO. - KCB Tooth Flank - Straight Tooth Power - Electric Applications - Oil Transfering Pressure Medium - Oil Viscosity - 5-1500cst Trademark - SOLID Specification - GB/T 19001-2000 HS Code - 8413602990 Mesh Form - External Engaged Tooth Curve - Cycloid Type - Normal Line Gear Pump Certification - CE, ISO Temperature - 200 Certificate - CE, ISO, SGS Transport Package - Marine Wooden Case Origin - WENZHOU KCB series Gear pump is mainly to carry the lubricator in various lubricating system of mechanical equipments, also it's suitable to carry the oils with the lube feature and their viscosity should below 300cst and the temperature should less than 300 degree centigrade, furthermore, the gear pump in stainless steel can transport the edible oils, beverages and so on. The pump hasn't valve itself. Shaft seal has skeleton oil seal, mechanical seal and stuffing seal. KCB/2CY Cast Iron or Stainless Steel External Gear Oil Pump Application KCB Gear Oil Pump applies to transfer non-corrosive lubricating-oil or equivalent liquid without solid particle and fibre at temperature below 300oC and with the viscosity of 5× 10-6~1.5× 10-3m2/S(5-1500cSt), such as diesel oil, crude oil, engine oil, hydraulic oil etc. If it is coupled with copper gear and ex-proof motor, it is suitable for gasoline, benzene transfer. It also fit for drink, milk, honey, vegetable oil transfer if coupled with stainless steel material. This pump is coupled with pressure relief valve. There are cast iron, aluminum alloy and stainless steel pump body for option. The seal can be oil seal, packing seal or mechanical seal at customer's demand.
