Trunnion-mounted valve
ballwith handwheelpneumatically-operated

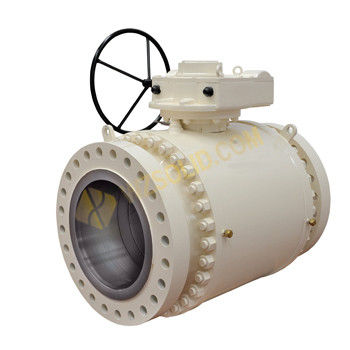

Trunnion-mounted valve - Wenzhou Solid Mechanical Equipment Co., Ltd. - ball / with handwheel / pneumatically-operated
Trunnion-mounted valve - Wenzhou Solid Mechanical Equipment Co., Ltd. - ball / with handwheel / pneumatically-operated
Trunnion-mounted valve - Wenzhou Solid Mechanical Equipment Co., Ltd. - ball / with handwheel / pneumatically-operated - image - 2
Trunnion-mounted valve - Wenzhou Solid Mechanical Equipment Co., Ltd. - ball / with handwheel / pneumatically-operated - image - 3
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
with handwheel, pneumatically-operated
Media
for water
Body
flange, small, trunnion-mounted, stainless steel, cast steel
Applications
for industrial applications
Other characteristics
high-pressure, ANSI
DN

Min.: 2 in

Max.: 24 in

Temperature

Min.: -29 °C
(-20 °F)

Max.: 200 °C
(392 °F)

Description

Detailed Product Description Application: - industrial Usage, Water Industrial Usage Channel: - Straight Through Type Connection Form: - Flange Driving Mode: - Manual Function: - Blow-Down Valve HS Code: - 8481 Material: - Cast Steel/Stainless steel Model NO.: - Q347 Q41 Q71 Nominal Pressure: - ANSI CLASS 150-900 Origin: - China Pressure: - Class150 - Class2500 or Pn16 - Pn420 Size: - 2"-48" Specification: - PED/CE, API 6D, API 607, ISO9001 Structure: - Trunnion Ball Valve Temperature: - Normal Temperature Trademark: - SOLID Transport Package: - Plywood Case Type: - Trunnion Ball Valve Trunnion mounted ball valve usually has floating valve seat, under the media pressure, the valve moves, so that the sealing ring tightly pressed on the ball in order to ensure the seal. Usually in the upper and lower shaft there are bearings, operating torque is small, suitable for high pressure and large diameter of the valve. In order to reduce the valve operating torque and increase the reliability of the seal, valve seal has emerged in recent years, both the pressure injection of a special lubricant in the sealing surface, to form a layer of film that enhances the sealing, and reduce operating torque, more suitable for large-diameter high-pressure valve. trunnion mounted ball valve is suitable for Class150 to Class2500 P N ~ C, 16 ~ P N 160, JIS 10K to JIS 20K of the pipeline, used to cut off or connect the line of medium, use different materials, can be separately applied to water, steam, oil, liquefied petroleum gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea and other media.
