Floating ball valve
leverfor waterfor oil

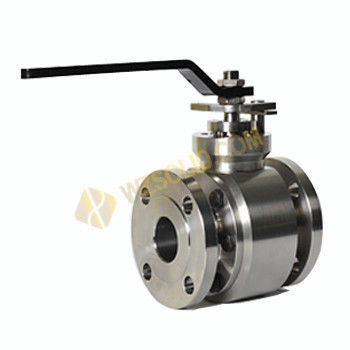

Floating ball valve - Wenzhou Solid Mechanical Equipment Co., Ltd. - lever / for water / for oil
Floating ball valve - Wenzhou Solid Mechanical Equipment Co., Ltd. - lever / for water / for oil
Floating ball valve - Wenzhou Solid Mechanical Equipment Co., Ltd. - lever / for water / for oil - image - 2
Floating ball valve - Wenzhou Solid Mechanical Equipment Co., Ltd. - lever / for water / for oil - image - 3
Add to favorites
Compare this product


Characteristics

Type
floating ball
Operation
lever
Media
for water, for oil, for acids, for gas, for steam
Body
flange, stainless steel, cast steel
Applications
for industrial applications
Other characteristics
ISO, full-flow, anti-static, fire-safe
DN

Min.: 15 mm
(0.591 in)

Max.: 100 mm
(3.937 in)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 300 °C
(572 °F)

Description

1) Design standard: ASME B16.34 2) Flanged end: ASME B16.5 CLASS 150/300 3) Fire safe design: API 607 4) Testing: API 598 5) Mateiral:ASTM A351 CF8M,CF8,CF3M,SS316,SS304,ASTM A216-WCB 6) Size: DN15- DN100, 1/2" - 4" 7) Working pressure: max 150/300LBS 8) Working temperature: -20 ~ 180 °C (RPTFE), -20~ 300 °C (PPL) 9) Working medium: Water, Oil, Gas, Acid, Steam,etc Features: 1) Blow-out proof stem 2) Investment Casting Body 3) Anti-static Device for Ball-Stem-Body 4) 2 Belleville Washer to Self-adjust Packing 5) ISO 5211 Direct Mounting Pad for Easy Automation 6) Pressure Blance Hole in Ball Slot 7) Full Bore Model NO.: Q41F Connection Form: Flange Nominal Pressure: 150lb to 2500lb Structure: Floating Ball Valve Function: Blow-Down Valve Application: Industrial Usage, Water Industrial Usage Class: 150lb to 2500lb Application Fields: Metallurgy,Light Industrial,Electric Power,Petroch Specification: API6D, ISO9001, CE, SGS, etc HS Code: 8481804090 Material: Forged Steel Driving Mode: Manual Channel: Straight Through Type Type: Floating Ball Valve Temperature: Normal Temperature Size: 1/2" to 4" Certificates: API 6D, CE, ISO9001 Trademark: NIPO/OEM Origin: Wenzhou, Zhejiang, China
