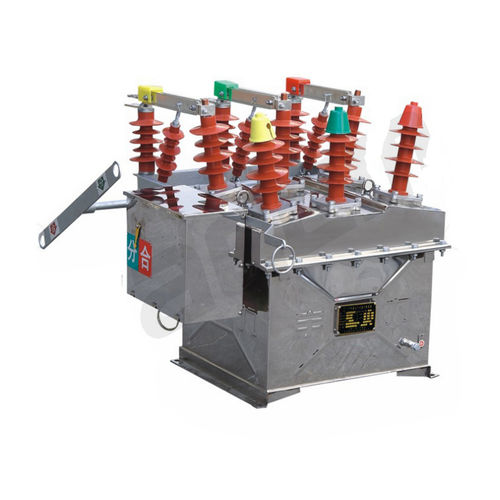

Vacuum circuit breaker ZW8-12 (G) series
insulationthree-phaseover-current

vacuum circuit breaker
vacuum circuit breaker
Add to favorites
Compare this product


Characteristics

Type
vacuum
Electrical characteristics
insulation, three-phase, over-current, AC, 3-pole, short-circuit, high-voltage, high-voltage, overcurrent
Operating mode
manual
Applications
for network protection
Other characteristics
outdoor
Primary current

630 A

VAC

12 kV

Description

ZW8-12 series vacuum circuit breaker is a H.V. outdoor switch with rated voltage 12kV, tri-phase AC 50Hz, which is mainly used for making and breaking load current, over-current, short-circuit current of rural network, urban network and miniature power system. The overall structure of this product is tri-phase co-box type, tri-phase vacuum explosion chamber in the metal box, the performance is reliable, and the insulation level is strong by making use of SMC insulation material phase to phase insulation and to earth. ZW8-12G consists of ZW8-12 circuit breaker and isolation blade, called combined circuit breaker, use for breaking switch. The operating device of this series product is VCT23 spring loaded operation mechanism, divided into two kinds of motor operation and manual operation. It has the function of surge control, can meet the demands of control and measurement. This breaker matches with electronic control unit to realize Four Remote monitor.
