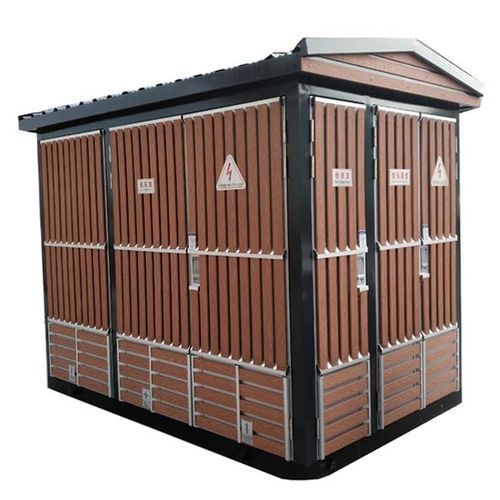

Medium-voltage transformer substation YBM

for high-voltage transformers

YBM transformer substation includes (1)Medium/High voltage compartment, (2)Low voltage compartment (3) transformer compartment. We can make this substion as user and customers requirement under the drawing/single line diagram (SLD).We design & produce this substation under the international standard of IEC1330 ,H.V.standard IEC62271-200. HV & LV compartment is with completed function. 1.)H.V.compartment has various of power supply methods when testing power supply in 1 time, it also can be installed with H.V.testing appliances to reach the demand of H.V.testing. 2.)The transformer compartment can be choosed S7 ,S9 or other low consumption oil immersed transformer and dry type transformer. The transformer compartment has automatic start wind cooling systems and lighting systems. 3.)Low voltage compartment can be made according to users' need , it adopts fixed or assembled structure to be electrical power supply system,it has many function like light distribution ,power distribution, reactive power ,electrical power testing.etc. to improve the power distribution quality and satisfy the user. This substation body/enclosure mainly has metal material, stainless steel material ,color steel composite board material, and non -metal material ...which can be choosed by user and customers This substation is a very important power distribution and supply unit in the electrical cable power net.it is a kind of completed set of power supply with H.V.controlling,protection and converting ,distribution.. it used in 3 phase AC 50Hz and rated current max 1600KVA transformer.
