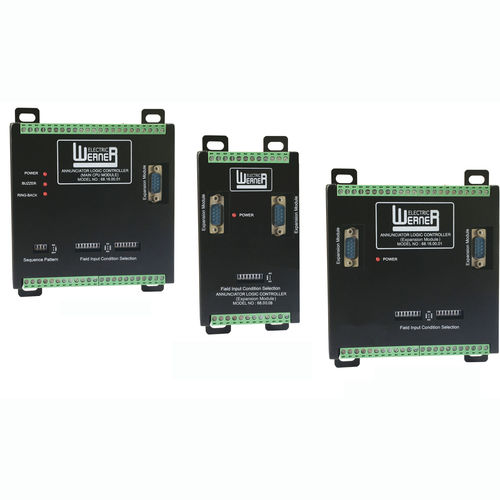

Box programmable logic controller 68 Series

with integrated I/OModbus

WERNER'S 68 series annunciator logic controller can be used for integrated alarm and supervision in various manufacturing processes. In highly automated and robotized plants, sophisticated control technology is employed to ensure safe operation. Features Overview - Highly reliable in the event of emergency - Sleek & economical, saves space in panel - Basic module available with 16 I/P & 16 O/P - Expansion module available in 16 & 8 I/P & O/P Highlights - Available with many circuits & sequence patterns - Programming through pre-set switches in this module - Options of redundancy and modbus protocols available in the module - FIFO, LIFO, Ringback and 15 other ISA / JIS sequences built in - Sequences can be selected by dip switches on field - Input NO / NC status can be set by dip switches on field - Basic module available with 16 I/P & 16 O/P - I/Os expandable to control upto 200 windows In the event of accidental control circuit breakdown, 68 series annunciator plays a great role in monitoring process condition until the system returns to normal conditions. The annunciator contains 15 main and auxiliary circuits, with 16 sequence patterns. Mainly confirms to JIS/ISA standards and incorporates many firstout operations. As all signals necessary for a system are provided, one unit suffices to construct an annunciator system. No instruction word or grammar is necessary for programming, as such operation is greatly facilitated and danger of settings change due to power failure or noise is eliminated. As the input/output circuit is isolated from control circuit, excellent noise-resistance characteristics are obtained.
