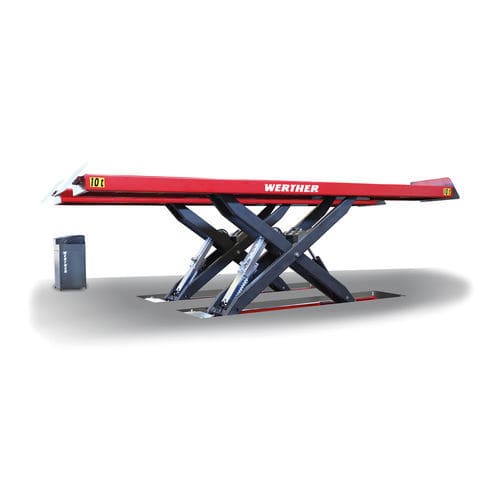

Scissors post lift TRUCK GL series10 ton20 tonelectro-hydraulic
Add to favorites
Compare this product
Characteristics
- Type
- scissors
- Maximum load
- 10 ton, 20 ton
- Operation
- electro-hydraulic
- Applications
- for trucks
- Voltage
- 400 V
- Other characteristics
- platform, recessed
- Lifting height
Max.: 2,200 mm
(86.614 in)Min.: 400 mm
(15.748 in)- Minimum height
400 mm
(15.75 in)- Lifting time
60 s
- Motor power
Max.: 7.5 kW
(10.2 hp)Min.: 3 kW
(4.08 hp)- Pressure
7 bar
(101.53 psi)- Weight
Max.: 7,350 kg
(16,203.98 lb)Min.: 3,300 kg
(7,275.25 lb)
Description
- Power unit with electronic card
- Low voltage control (24V)
- Hydraulic-volumetric syncronism of platform
- Auto levelling platform device
- Safety valve in case of hydraulic failure
- Manual descent pump in case of power failures
- Mechanical safety ratchet
- Lateral guides for Jacking Beams
- “Buzzer” on last portion of descent
