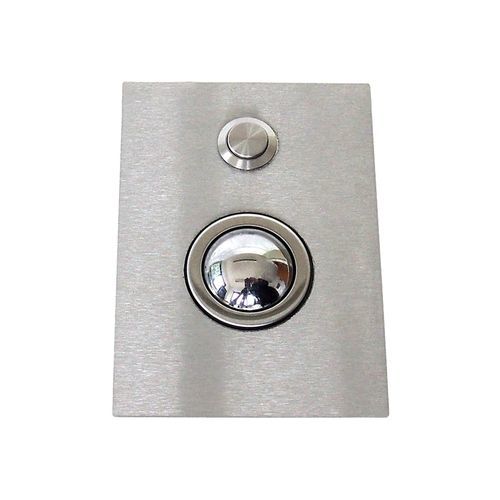

Mechanical trackball TBFM-38S-1B-M-U

panel-mount38 mmIP65

Vandal-proof trackball with stainless steel front plate and a stainless steel push-button, for front-mounting (installation from above). The trackball ball is equipped with a stainless steel protective ring. The plastic coated steel ball is non-flammable, prevents static electricity, scratches on the ball and does not feel so cold. Design: Front plate stainless steel, brushed Dimensions: 94 x 132 x 40 mm (W x H x D) Ball diameter: 38 mm Operating Principle: Electromechanical Protection class (max): IP65 (static), IP54 (dynamic) Trackball Material: Plastic coated steel ball Button technology: short stroke button Power: 5 V DC max. 50mA Interface: PS / 2, USB Mechanical connection: (plug (6 way male molex 5046 series)) Manufacturer's designation: WES TBFM / 38 / P1 / UP2 / 1TAST-V2 Drawing under: http://www.wes-electronic.de/en/draw/wes-38-1t-v2.pdf Remarks / Optional accessories: Note: 2-meter connection cable (PS / 2 or USB) is not included in the scope of delivery - Please order separately. Connection cable PS / 2, in length 2 m, Order no .: PS / 2-KABEL_2M_6_MOLEX Connection cable USB, length 2 m, Order no .: USB-KABEL_2M_6_MOLEX Also available with 2 buttons, Order No .: WES TBFM / 38 / P1 / UP2 / 2TAST High reliability Long service life and less costs during operation, thus a first-class price / performance ratio Many years of experience in industrial trackballs means you have the best advice on your specific application
