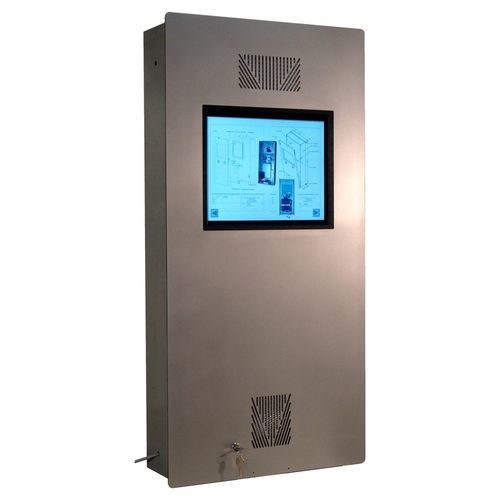

Terminal with touch screen Version 1

kioskwall-mountrugged

The robust and versatile terminal can be installed in a wall opening or in a brick wall. The housing system is specially designed for the intended use, if ventilation through the masonry is not possible. Features of the wall-mounted outdoor terminal version 1 - for integration into a wall 43cm / 17 "touch-screen monitor (vandal-proof) with back-ventilation system, UV filter Robust housing front made of stainless steel (V2A) or aluminum with silver grey powdered surface The front is inserted from the front using a hook system almost flush with the wall. Flush mounting frame made of galvanized steel sheet Silent fan Service access from the front connector strip and distribution box are integrated ventilation for supply an return air with climate module (heating, hygrostat, thermostat - without cooling module) Ventilation openings are located on the rear of the housing Possible options: Adaptation of the front panel or housing size and depth according to customer-specific conditions (from 1 piece). Powdered surface in preferred colour (RAL color) 15 "or 19" touchmonitor or protective glass Stainless steel keyboard Mounting shelf speaker Mini PC Further possible options are for example: Thermal printer 80 mm wide, Omnidirectional barcode scanner, inductive or magnetic / chip card reader, coin validator, web camera, telephone receiver with preamplifier, proximity sensor Measurements Dimensions: (HxWxD) Front panel 1130 x 560 x 3 mm / installation frame 1100 x 530 x 169 mm 06.01.2016 Errors and omissions excepted.
