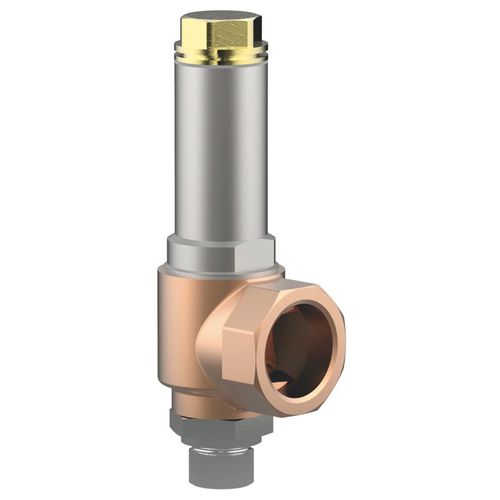

Gas safety valve Herose 06386
cryogenic

Gas safety valve - Herose 06386 - Wessington Cryogenics LTD - cryogenic

Add to favorites

Compare this product

Characteristics

Fluid

for gas

Other characteristics

cryogenic

Controlled pressure

Min.: 0.2 bar
(2.9 psi)

Max.: 40 bar
(580.2 psi)

Description

Standard safety valve (0.2 - 25.0/40.0 bar) Metal to metal seated, closed bonnet "cleaned and degreased for oxygen service" Part No. 06386.X.0000 Inlet: male thread type G (BSPP) acc. to ISO 228/1, Outlet: female thread type G (BSPP) acc. to ISO 228/1 Part No. 06386.X.2000 Inlet: male thread type R (BSPT) acc. to ISO 7/1, Outlet: female thread type G (BSPP) acc. to ISO 228/1 Part No. 06386.X.5000 Inlet: male thread NPT acc. to ANSI B 1.20.3, Outlet: female thread type G (BSPP) acc. to ISO 228/1 Part No. 06386.X.6000 Inlet: male thread NPT acc. to ANSI B 1.20.3, Outlet: female thread NPT acc. to ANSI B 1.20.3 Available options - on request only: - external parts nickel plated - with installed elbow at the outlet Applications: Provided as safety device for protection against excessive pressure in stationary and moveable gas cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG. Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K)
