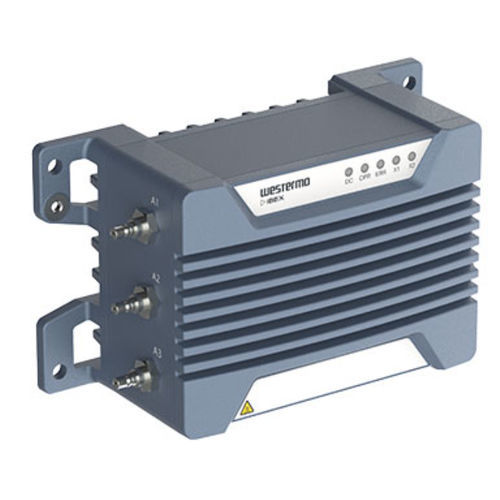

Managed communication router Ibex-RT-330 series

UMTSGNSSLTE

The Ibex-RT-330 is a mobile LTE router for onboard usage in trains, trams, locomotives and busses. The Mobile Communication Gateway (MCG) router is designed to withstand the tough onboard environmental conditions and can be remotely managed using web browser or SNMP management tools. The MCG provides advanced firewall functionalities and high-performance VPN connectivity. The router exceeds the high requirements for the most bandwidth-demanding applications worldwide and features global LTE bands to support all current, as well as future, frequencies. A compact design enables quick and easy installation into the tight spaces of trains, while configuration and unit replacement are simplified by a SIM card memory for configuration parameters. Dual SIM allow for further performance optimisations and carrier redundancy. IP66-rating and a wide temperature range from -40 °C to +70 °C ensure that the devices can be installed virtually anywhere, without the need of additional protection. Meeting the requirements of the rail market, the Ibex-RT-330 is very well-suited for any deployment in environmentally challenging environments. Features ✔ Mobile broadband Cat12 LTE-A router • Supports 3 x carrier aggregation and 256QAM • Worldwide LTE-A and UMTS/HSPA+ coverage • Dual SIM Support ✔ Designed for mobile usage • EN50155 and EN45545-2 certified • Compact design with M12 interfaces • Wide temperature range ✔ High bandwidth supports multiple applications • Data offloading • Remote monitoring • Video surveillance
